Adelphi Centrair single head filler - Stock Ref 3218

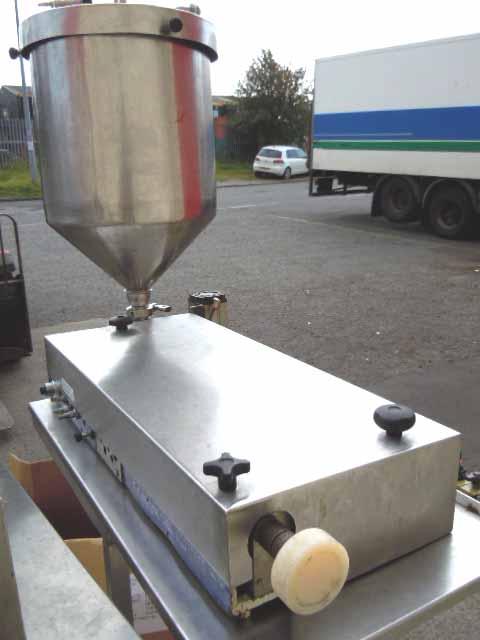

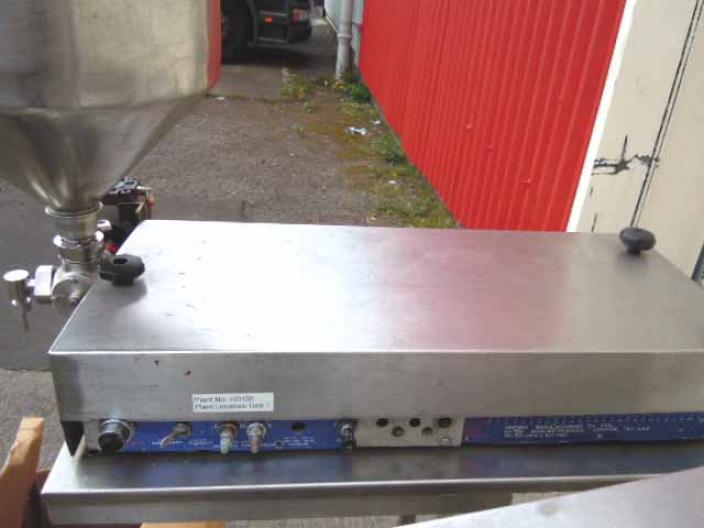

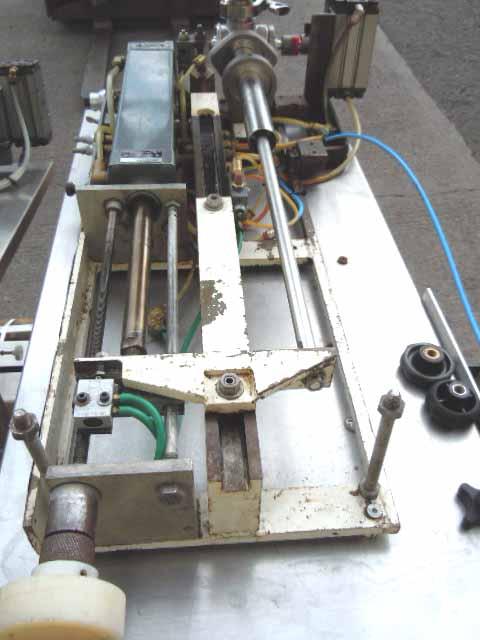

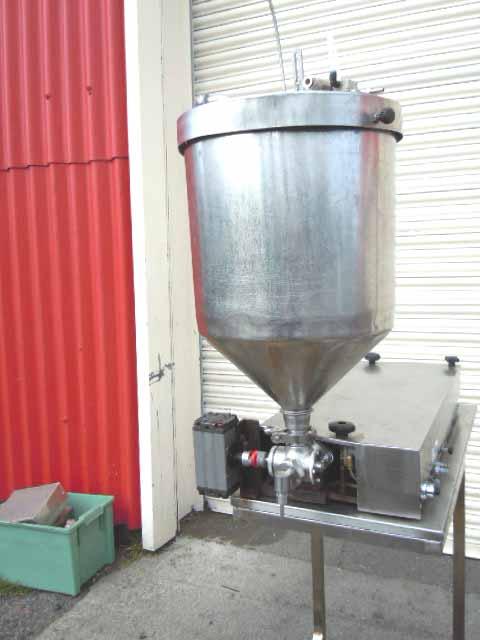

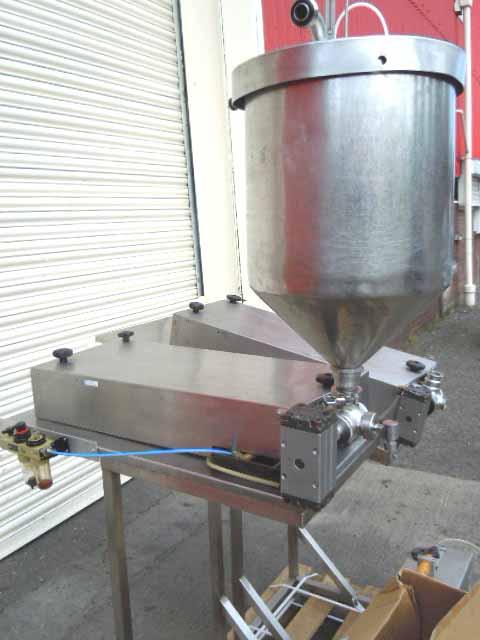

ADELPHI "Centrair" MKIV all pneumatic semi automatic all stainless steel single head filler for liquids and semi viscous products (creams, gels etc) 40mm dia x approx 275mm long product cylinders and sealed piston, stroke adjustable on the pneumatic cylinder with setting vernier scale, s/s product hopper 380mm dia x 600mm deep, approx gross volume of 65 litres. Max fill volume per cycle 300ml. The filling nozzle presently fitted is approx 8mm dia x 40mm long. A wide range of cyclinders and nozzles are available from the manufacturers. The hopper is attached to the rotary valve with a "triclover" quick release hygienic fitting. The machine has its own s/s support frame 850 x 440 x 900mm high.This is one of three similar fillers available.
