FLUID AIR type 003 micronising mill - Stock Ref 3353

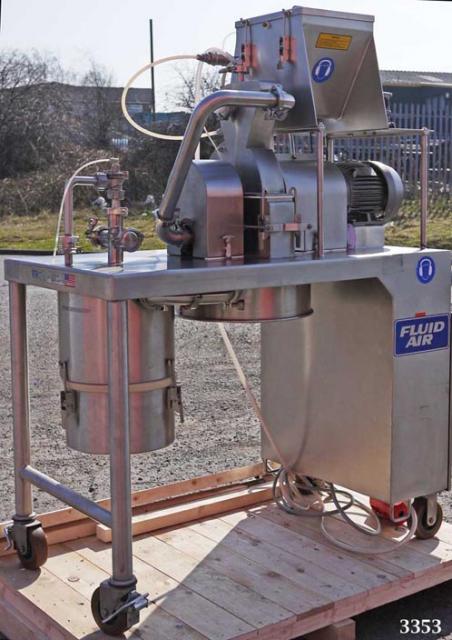

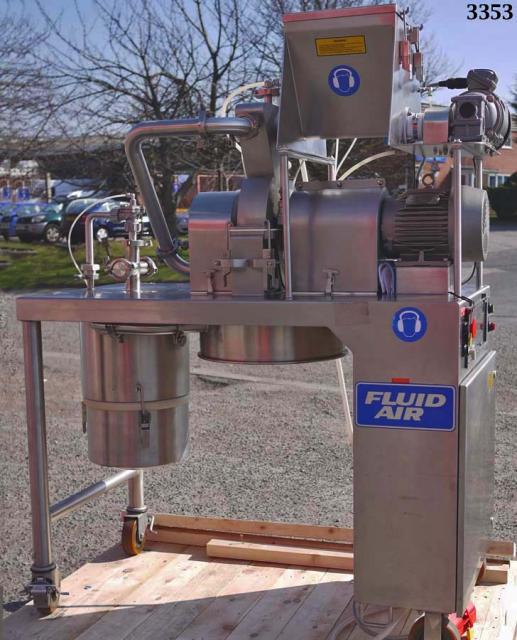

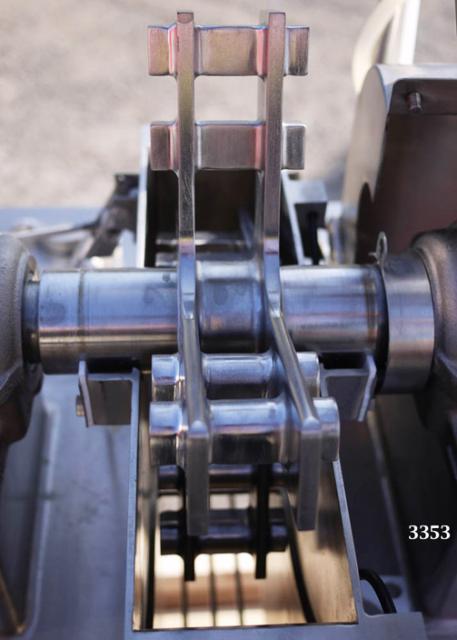

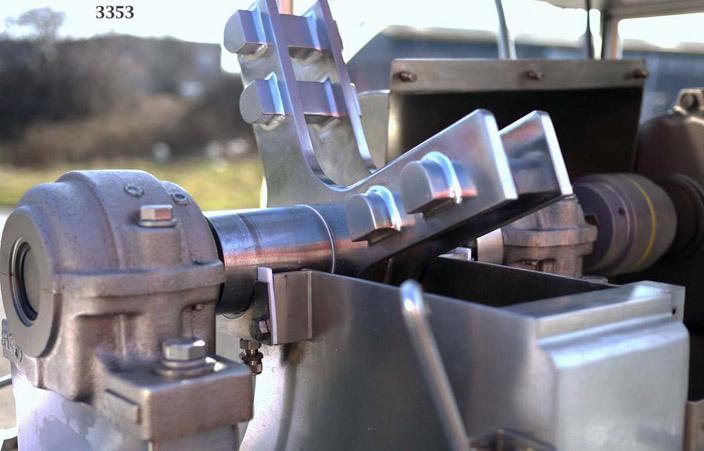

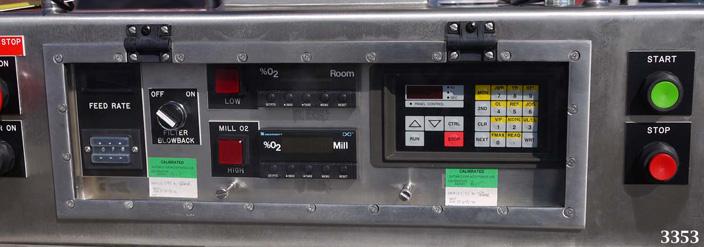

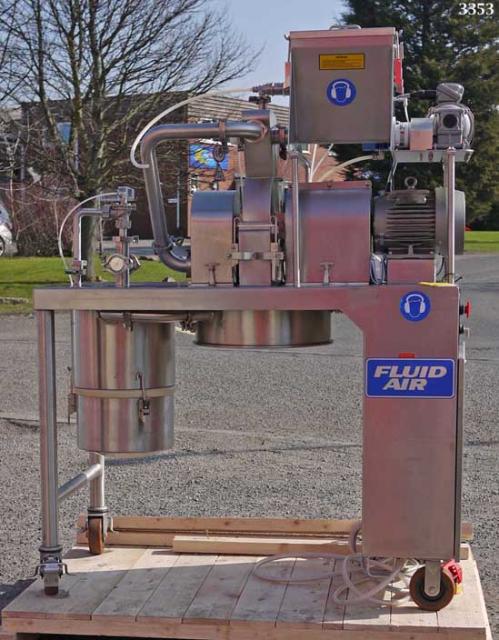

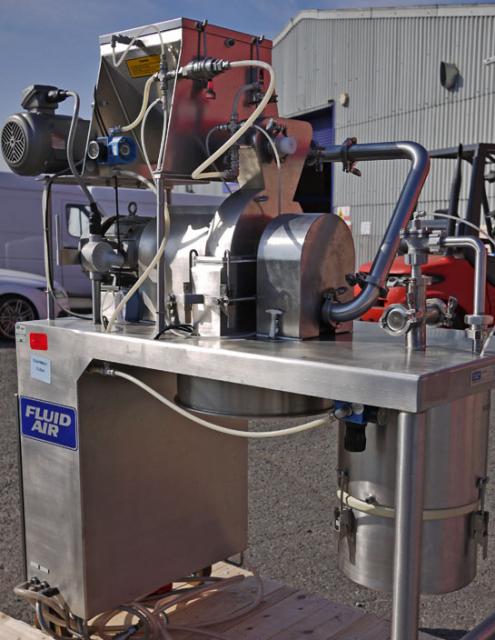

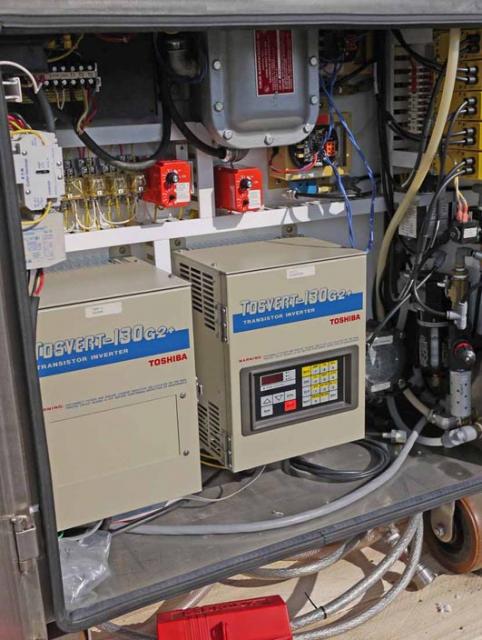

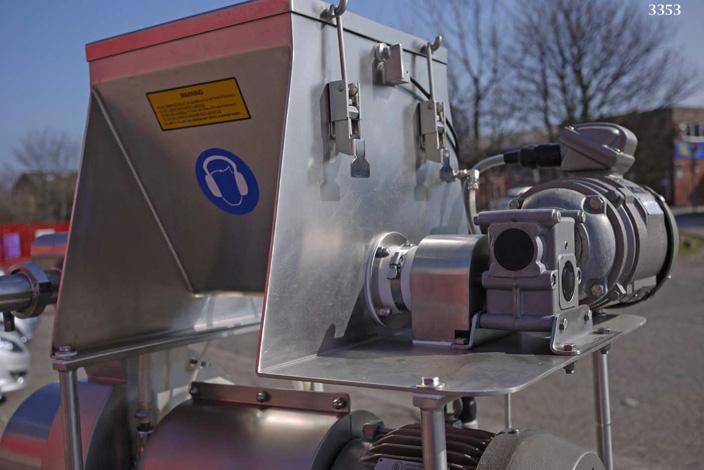

FLUID AIR type 003 high energy turbo type micronising mill constructed in 304 grade stainless steel (rotor in 17-4PH stainless steel) with No 4 grit polish finish, supplied new in for product development applications so the machine has had very limited use and is in excellent, clean condition. Product feed hopper (approx 20 litres) with variable speed drive and RPM indication. The machine is intrinsically safe as it has a full nitrogen purge system to all of the hazard zones (the mill feed hopper; mill feed device; and rotor bearing seals). As a safety feature their is an oxygen (PAC II) sensor which monitors the O2 levels and shuts down the power if the O2 level of 6% is exceeded. The Mill rotor has a four arm design with two fixed impact blades on each arm. Each impact blade has a flat surface and a radiused surface to enable two milling options by reversing the rotor direction of rotation. The mill chamber cannot be accessed without removing the bolted mechanical guarding system. The machine has an Estop and DC brake for instant stop. The machine control panel is purged with compressed air and has a 10 minute delay before power can be operated. On the machine is a large capacity high efficiency exhaust filter with reverse jet cleaning system and removable collection bin. The original user manual with drawings etc is available.
