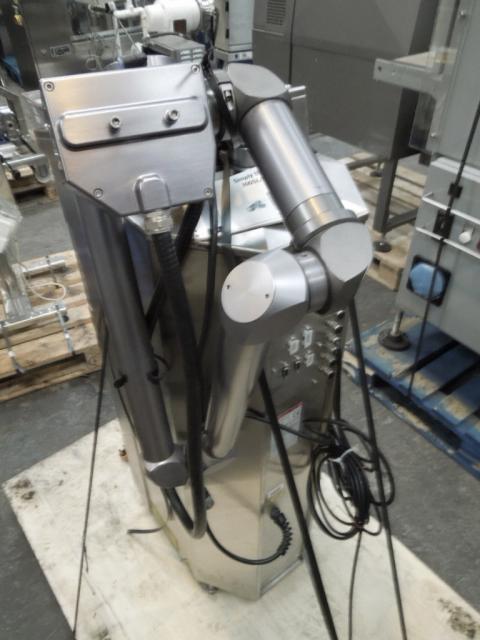

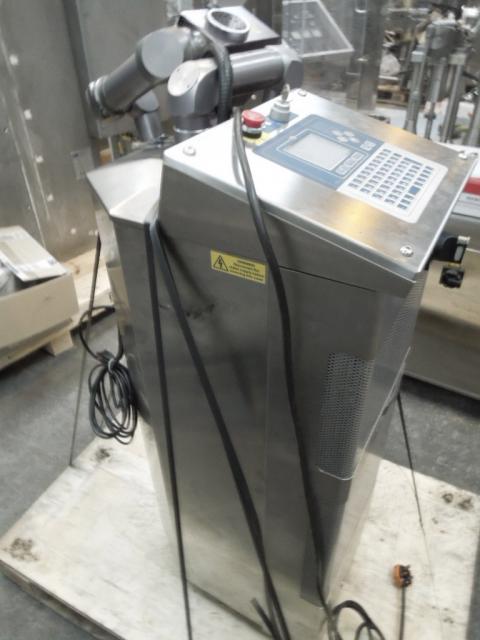

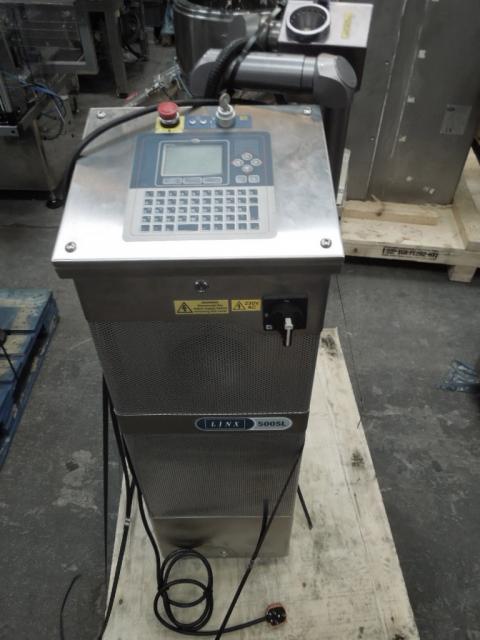

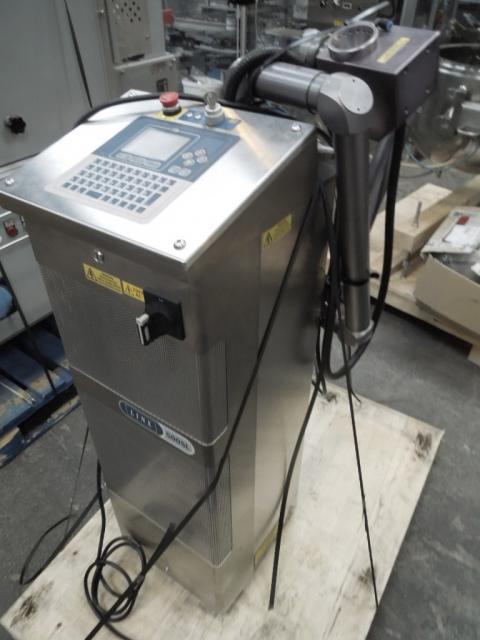

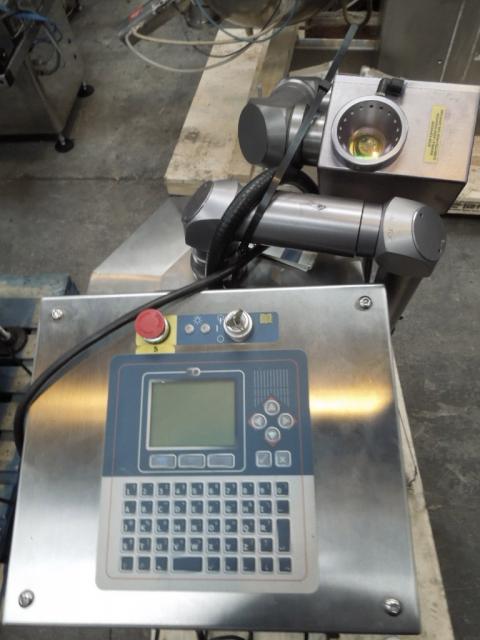

LINX 500SL laser coding system - Stock Ref 3762
LINX 500SL high speed laser coding system, supplied new in 2007, stainless steel enclosure with anodised aluminium articulated position adjustable arm with max 1.1m horizontal reach. The coder can generate up to 100 lines of code (max) but typically 25 lines (max). Standard one line code speed is 500 metres/min. For large character single line code the maximum speed is 740 metres/min. "Mark Field" is 75mm x 75mm (standard character) and 120 x 120mm (large character). Marking distance 120 +/- 2mm (standard) and 200 +/- 2mm (large). Character height 1 to 75mm standard and 1.5 to 120mm large. Features include: 0-360° orientation; column by column printing; barrelling correction; circular text; linme spacing; bi-directional printing; graphics download.
