Nica Systems Extruder and Spheroniser - Stock Ref 3521

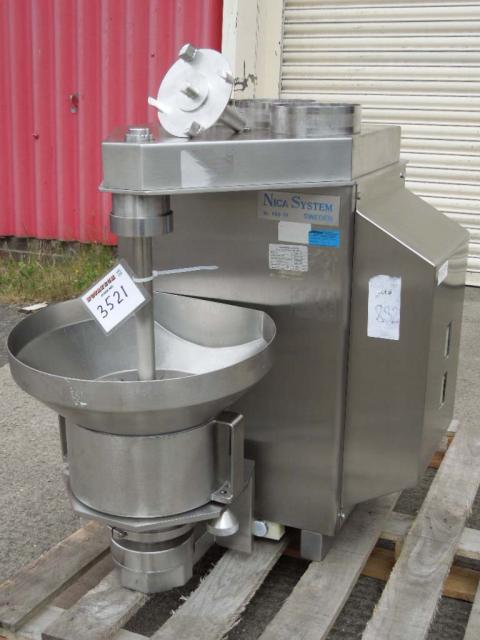

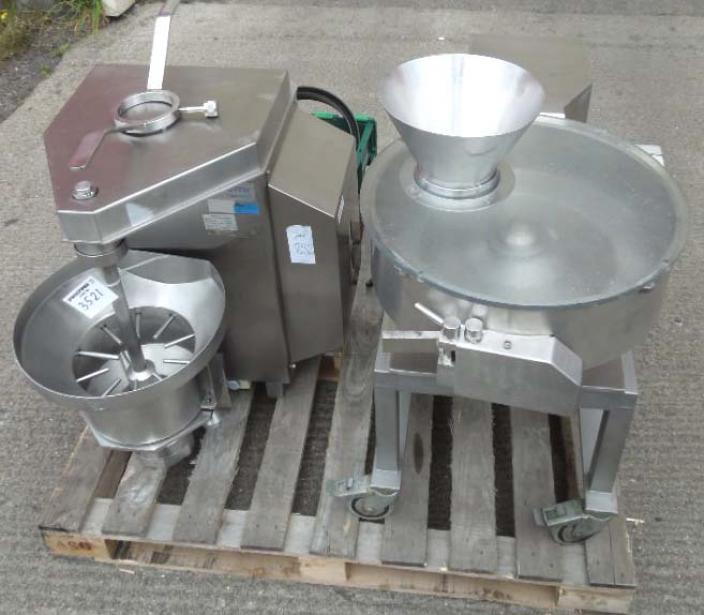

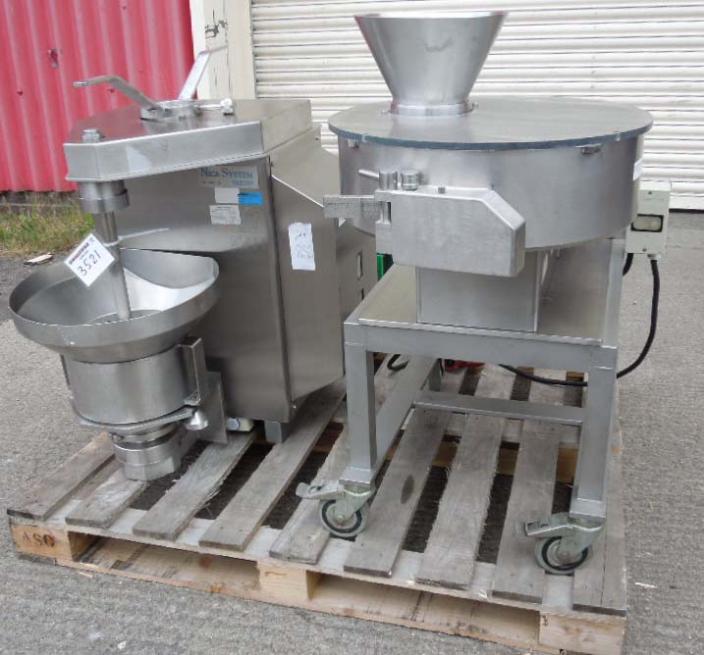

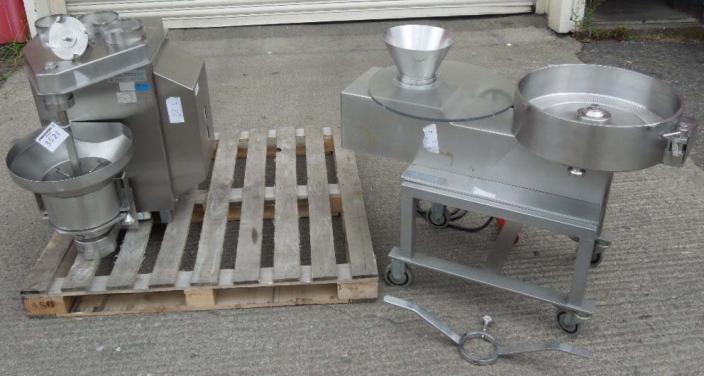

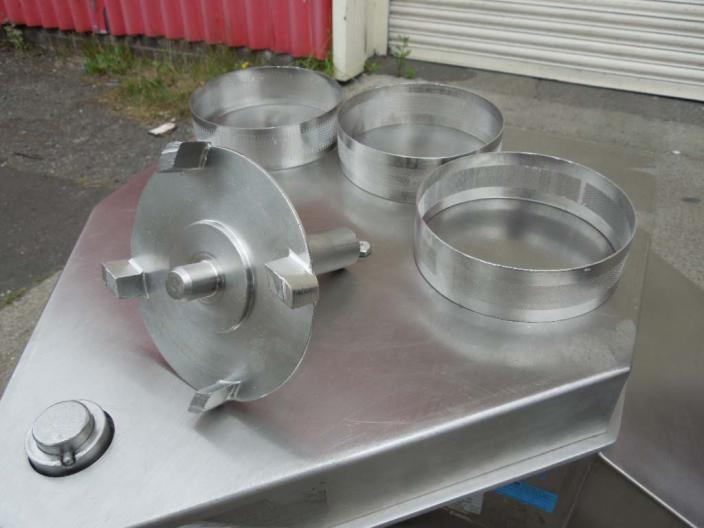

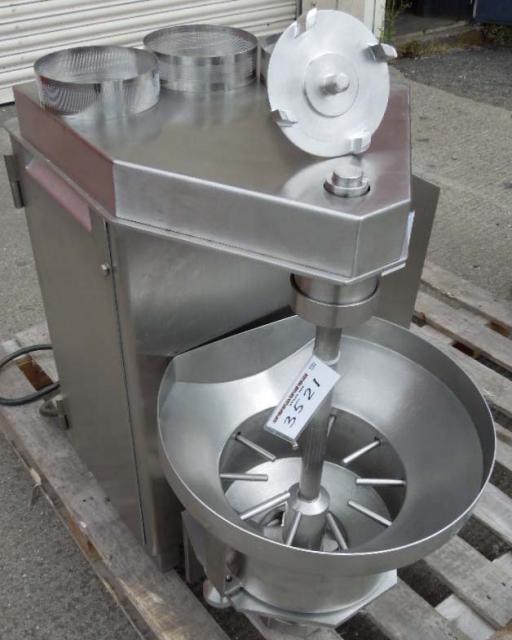

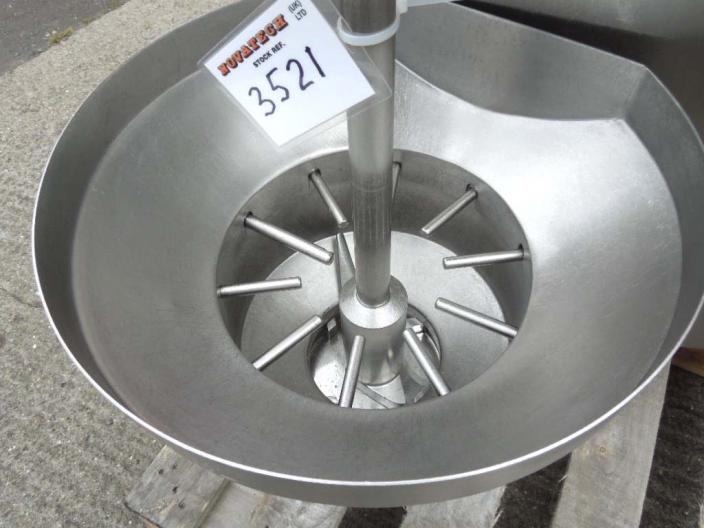

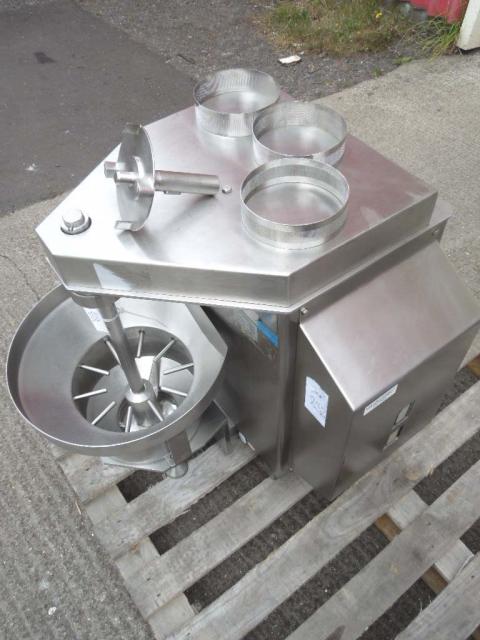

NICA SYSTEMS type E140 extruder in 316 grade stainless steel. Swing out safety interlocked front cover with 500mm wide feed port to the 230mm dia product feed bowl incorporating a scraper arm on the 25mm dia rotor shaft. 140mm dia rotor workhead with perforated screen driven from a 1.1kw 380v 3ph motor. Product outlet to floor 940mm. Control panel with E stop; LCD speed displays and stop/start for feeder and extrusion head. Mounted onto a stainless mobile base. Overall dimensions 800 x 960 x 1630mm high.

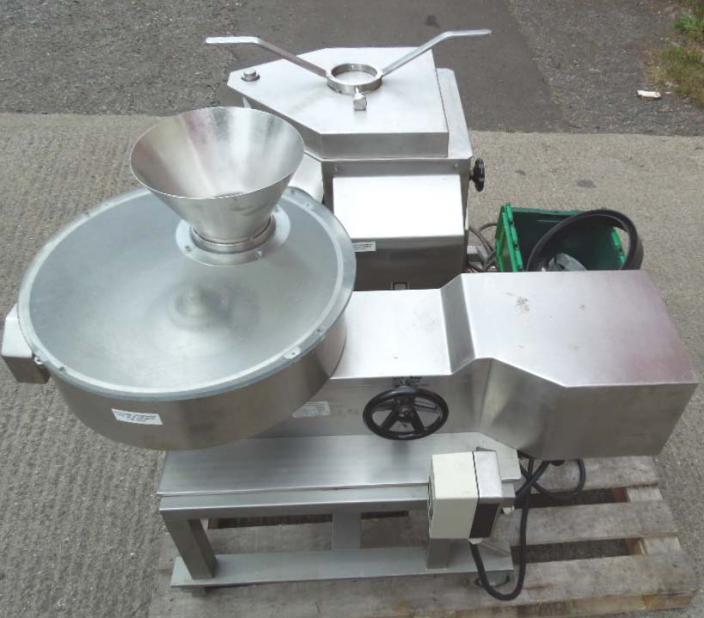

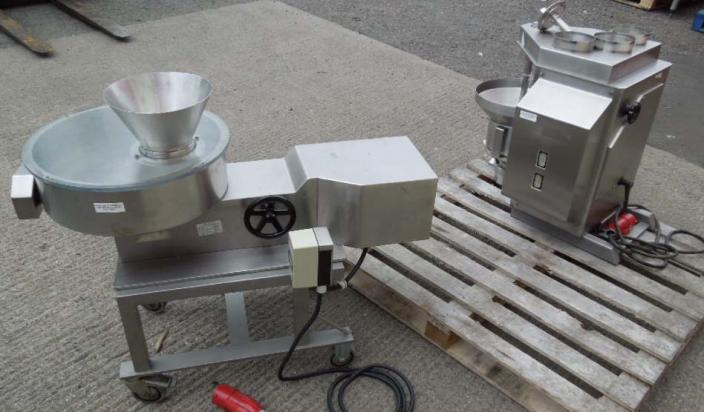

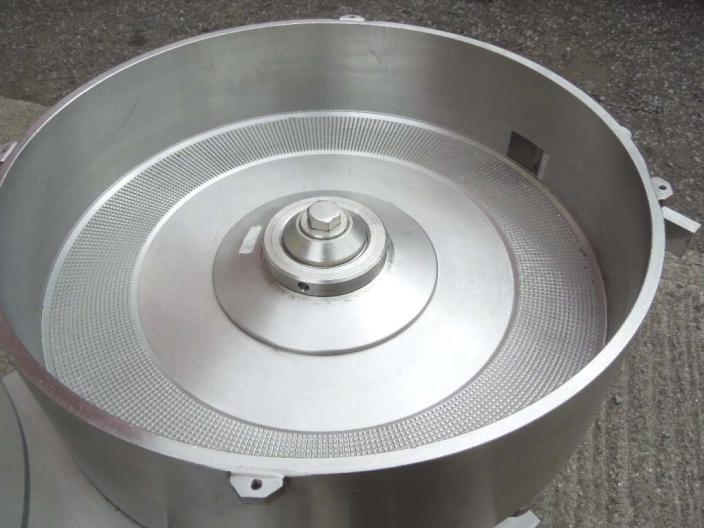

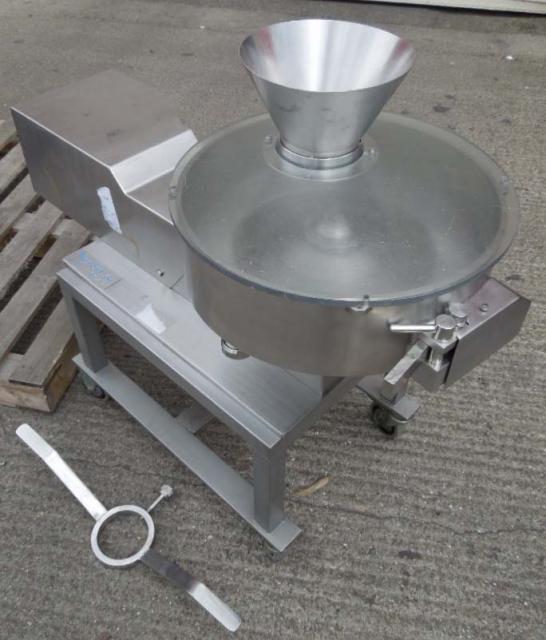

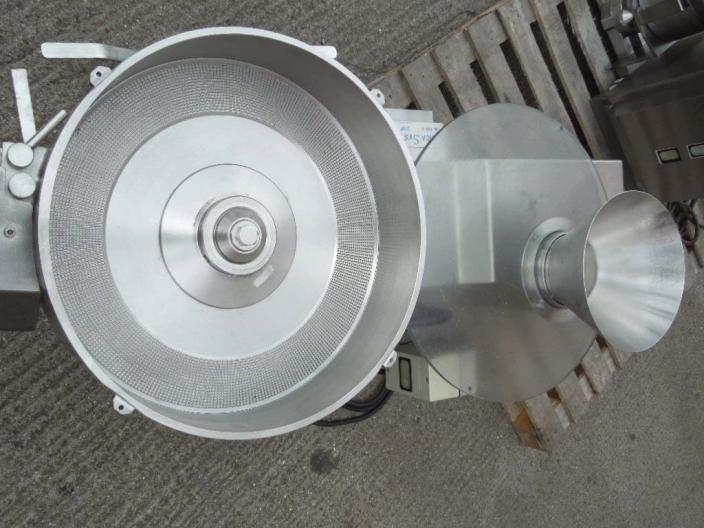

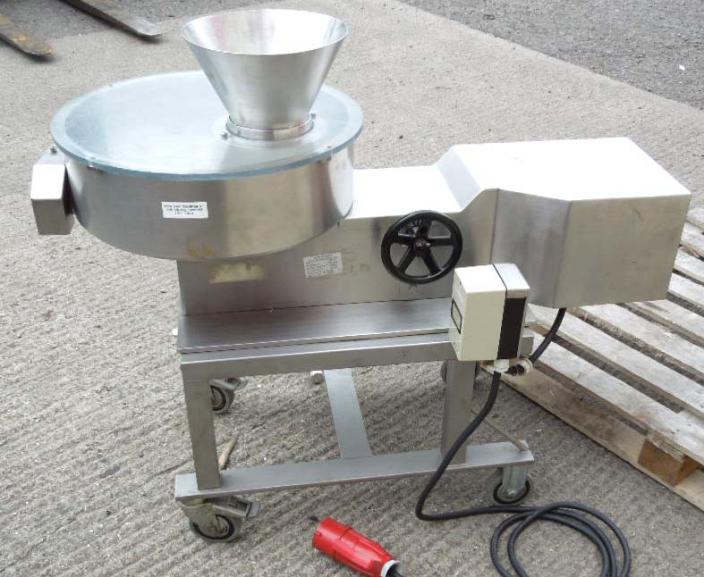

NICA SYSTEMS type S320 spheroniser in 316 grade stainless steel. 320mm dia x 100mm deep bowl with a 35 x 35mm safety locked product outlet. PERSPEX top cover with loading port. Variable speed handwheel. Control panel with stop/start, emergency stop, LCD displays for cycle timer and plate speed. 0.75kw 380v 3ph motor. Mounted onto a mobile stainless steel base. Overall dimensions 1300 x 645 x 1180mm high.
