Ref 4466 IMA TR130 blister line

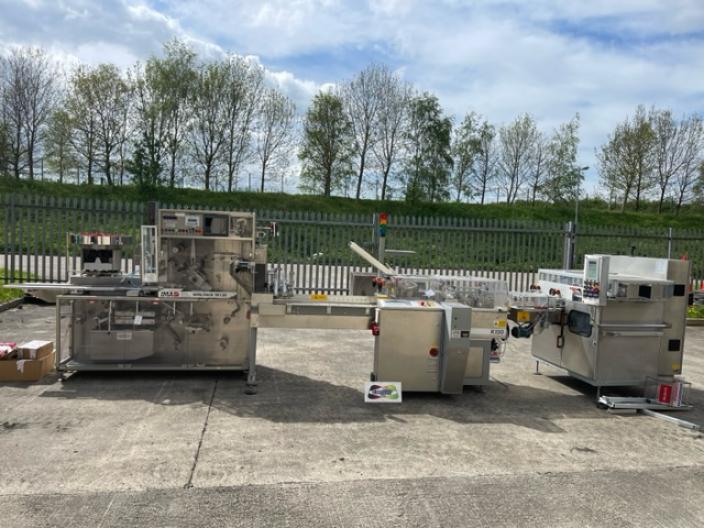

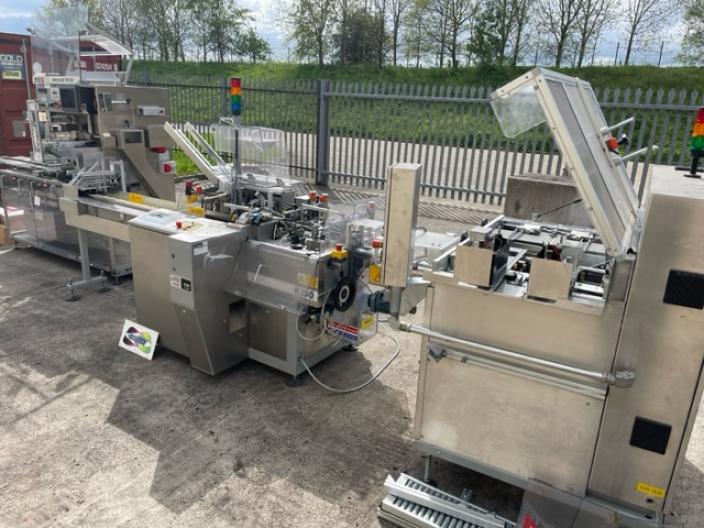

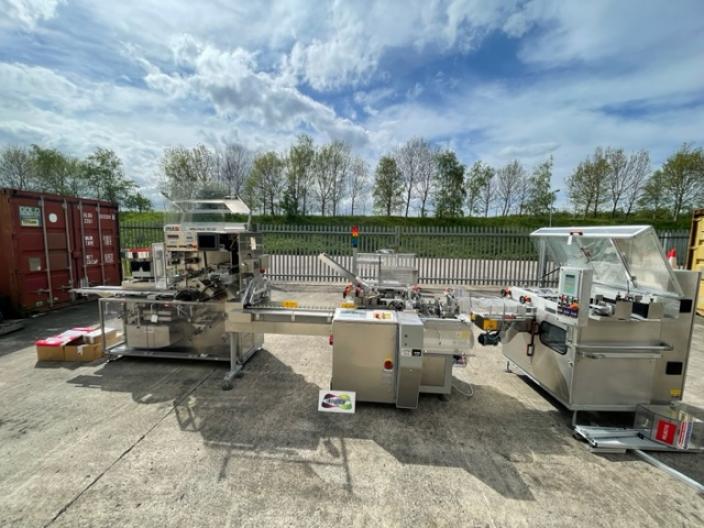

IMA Win Pack TR130 blister line comprising of:
TR130 Blister Machine
K150 Cartonning Machine
BFB model 3781 OverWrapper
Note: This line can be supplied with pharma grade OCS type HC inline high speed checkweigher.

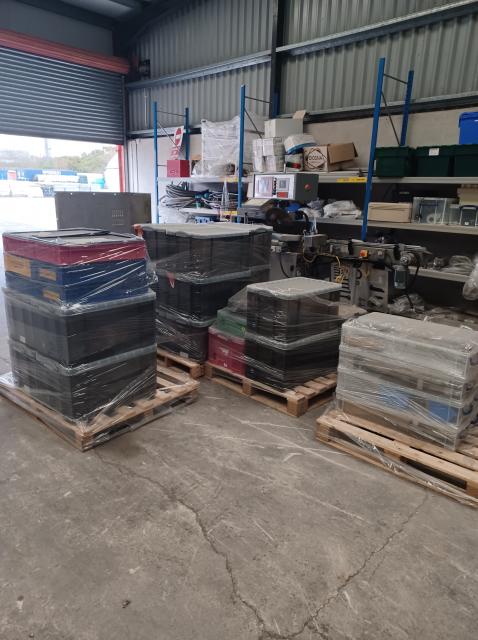

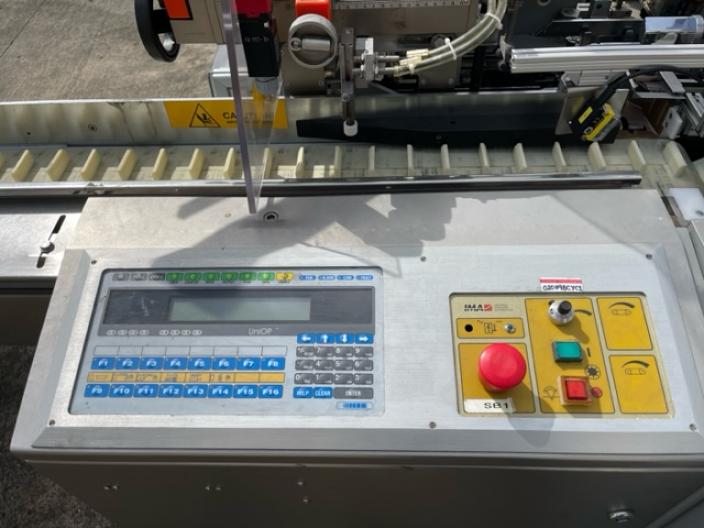

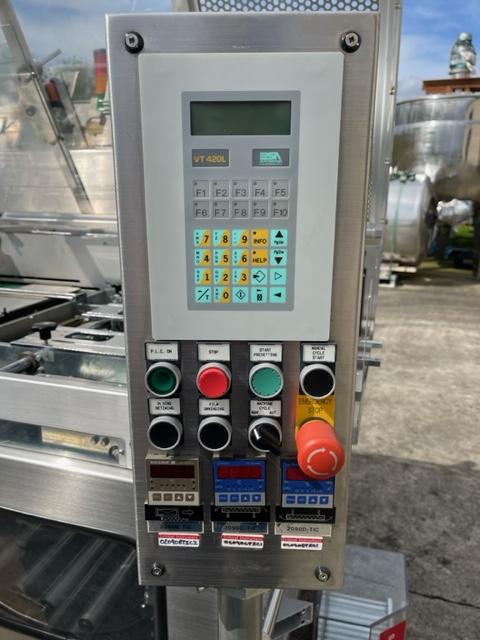

This line has been fully over hauled with a full electrical upgrade and touchscreen PLC controls completed by IMA. The line comes complete with a vast quantity of spares and change parts as well as a chiller unit and all relevant manuals and documentation. Presently set up on ALU/PVC.

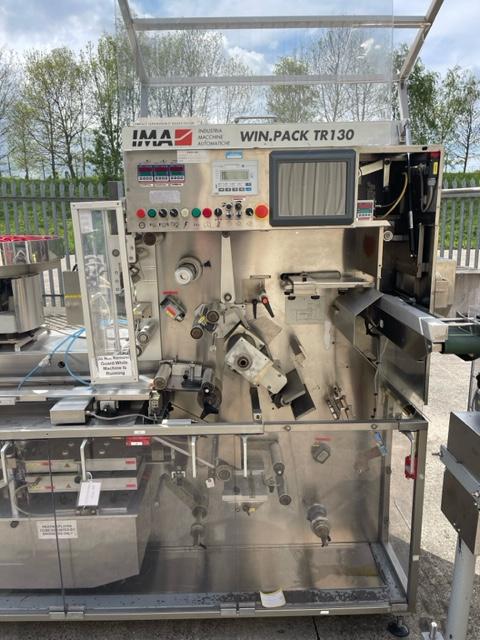

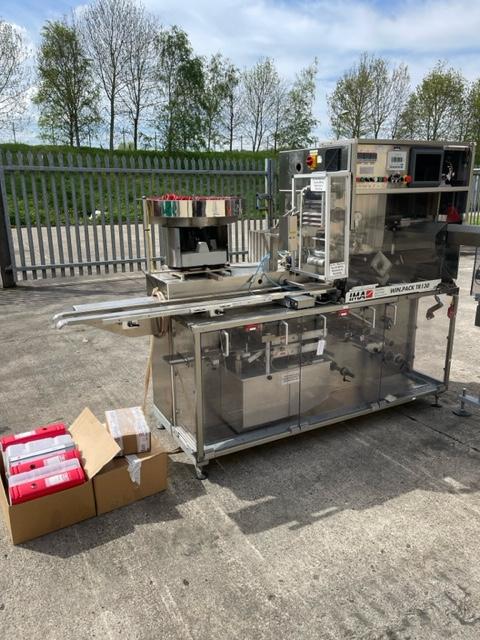

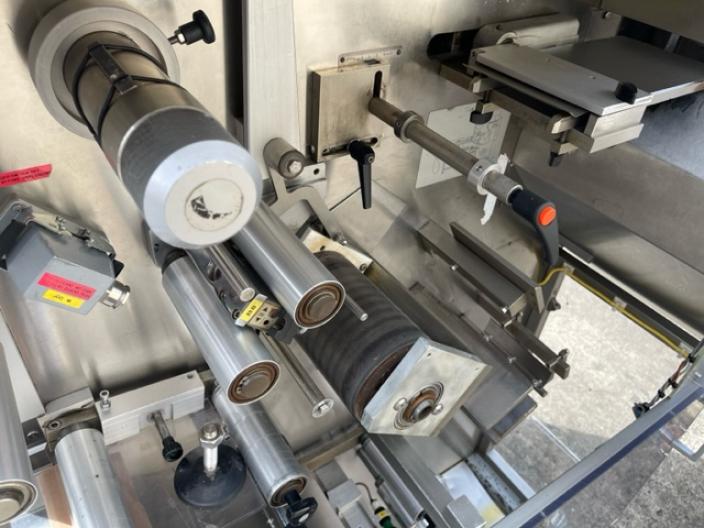

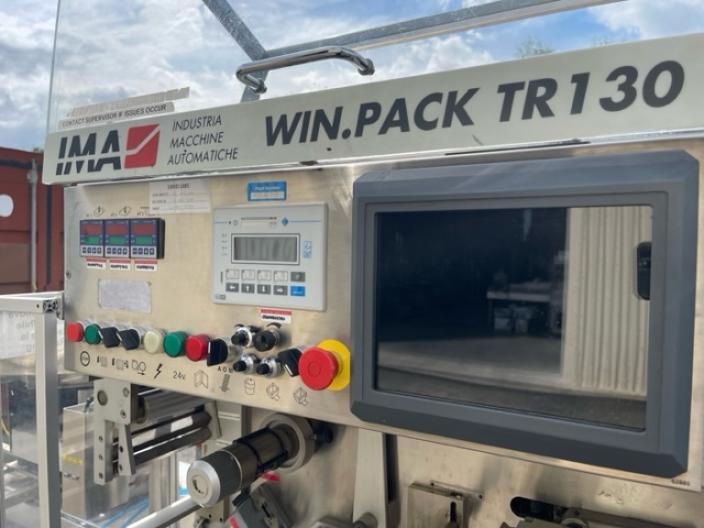

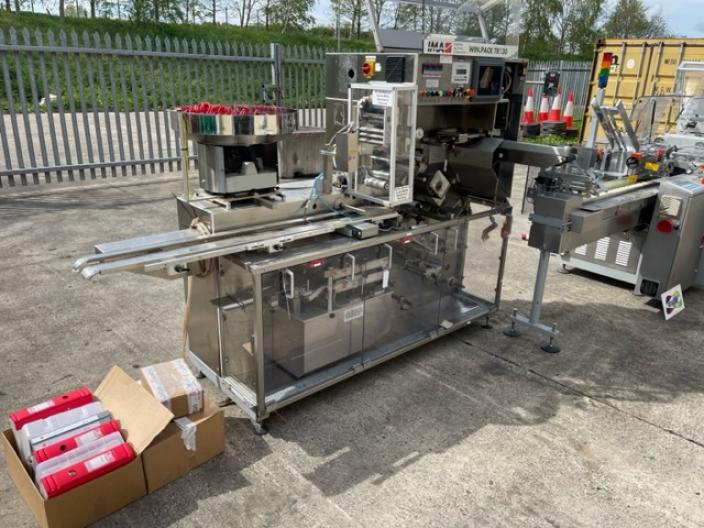

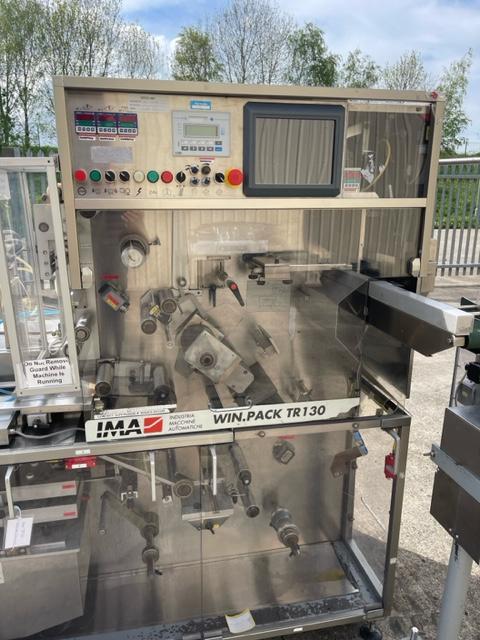

IMA Win.Pack TR130 automatic blister packer for tablets and capsules, output up to 210 blisters per minute. Blister dimensions:
Width 30 - 85mm
Length 60 - 130mm
Depth 12mm
The TR130 is a versatile, extremely compact and economical blister packaging machine with the best product price/performance/quality ratio in its product category and is perfect for producing both large and small batches .
Its compact design and balcony-type structure make it extremely accessible, easy to use and allows a full view of the entire production cycle. Conforming to GMP principles and guidelines, the TR130 machine cables and other connections are housed inside the machine structure. There are no lubricated mechanical parts situated above the formed material area; electric motors are within the machine frame and all of the external surfaces of the machine are smooth.
In the TR130, changeover and cleaning operations are very simple and fast due to the machine's dimensions, accessibility, simple parts in fixed positions and digital indicators.
The machine includes tablet feeder, brush box, Lynx b/w/ camera for missing product detection, and several sets of tools and cutters

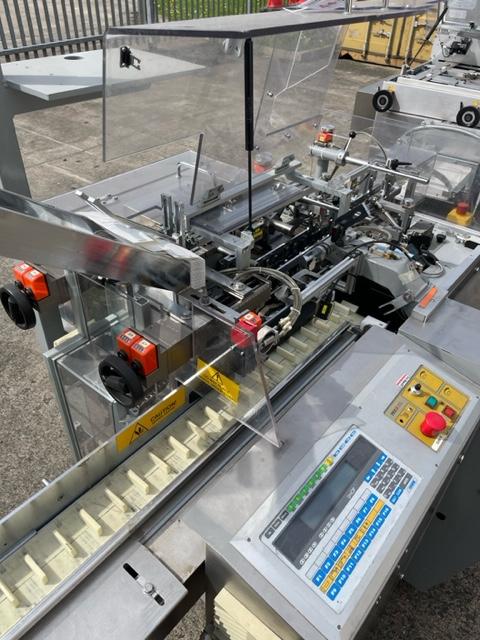

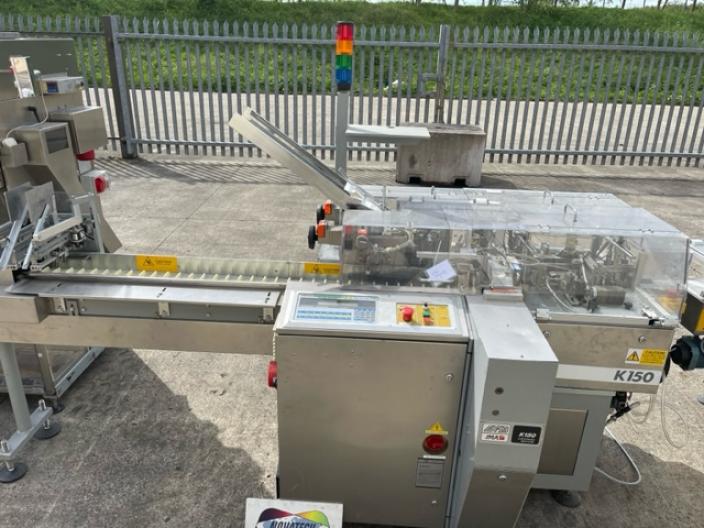

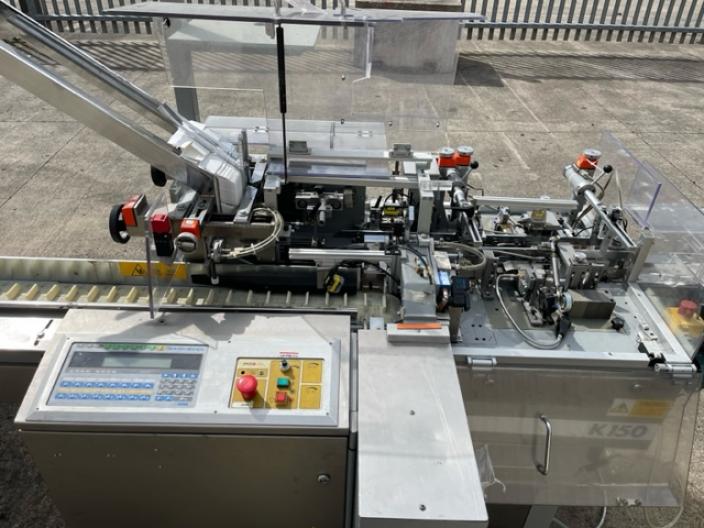

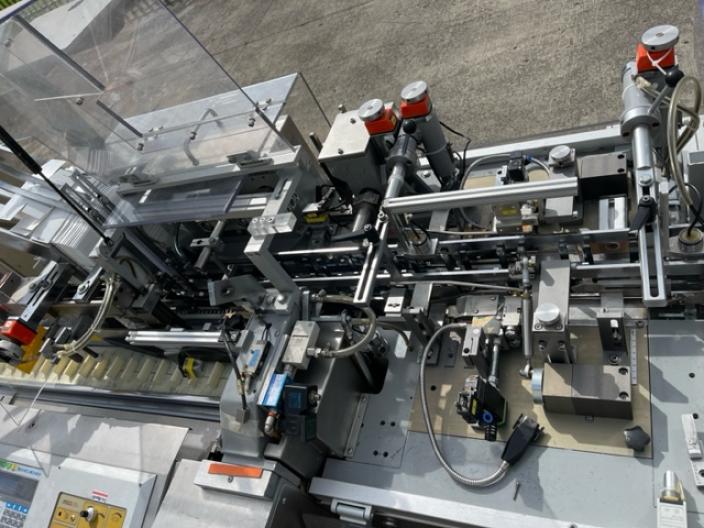

IMA BFB K150 automatic horizontal cartoning machine.
Production capacity cartons / min 15-150
Minimum box size, mm 20 x 12 x 50
Maximum size of the case, 85 x 60 x 190 mm
Pressure, atm 6
Power, Kw 3.5
Current A 11
Frequency Hz 50
Voltage 380 Volt
Mechanical speed: 150 /min
Length of carton (min): 20 mm
Length of carton (max): 85 mm
Width of the carton (min): 12 mm
Width of the carton (max): 60 mm
Height of the carton (min): 50 mm
Height of the carton (max): 190 mm
Leaflet device: Yes

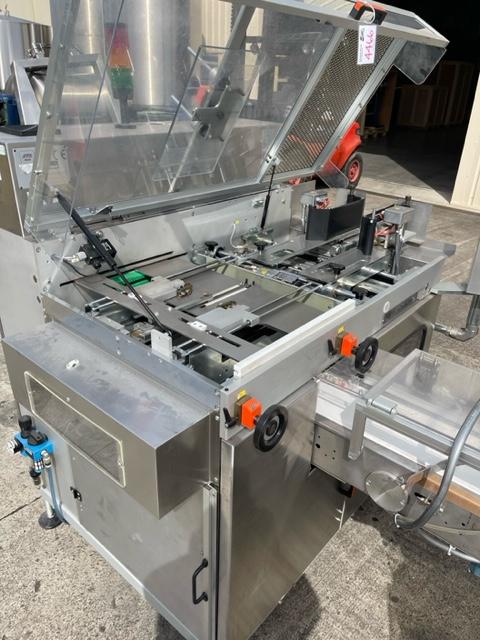

BFB model 3781E Overwrapper.
