Stock Ref 3818 - BPT Skerman mobile process vessel

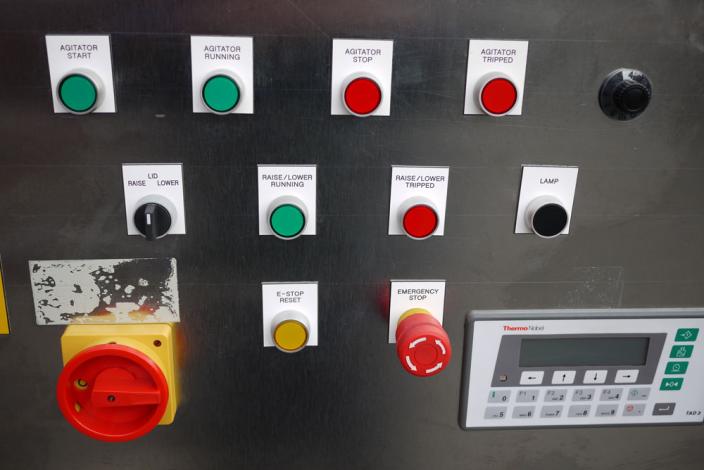

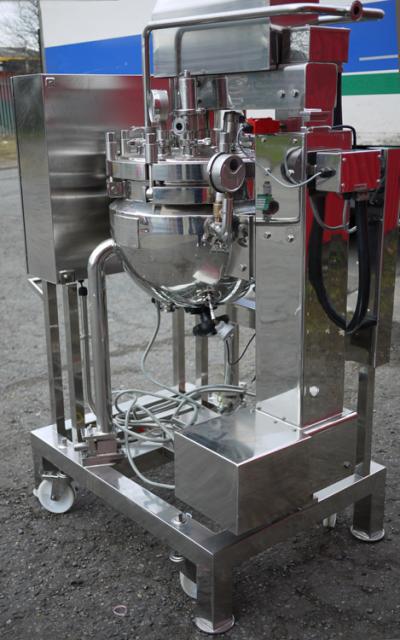

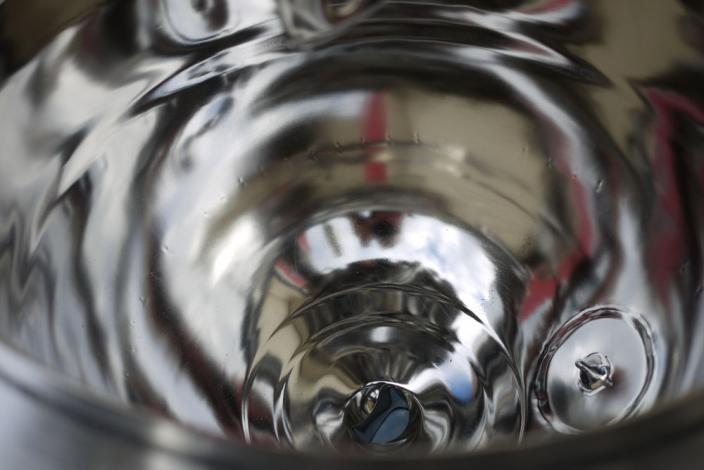

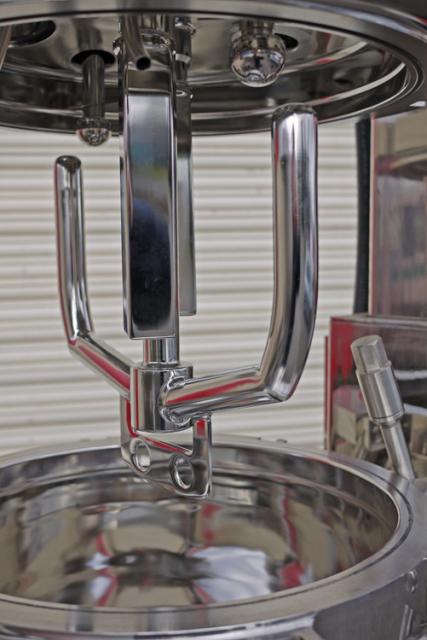

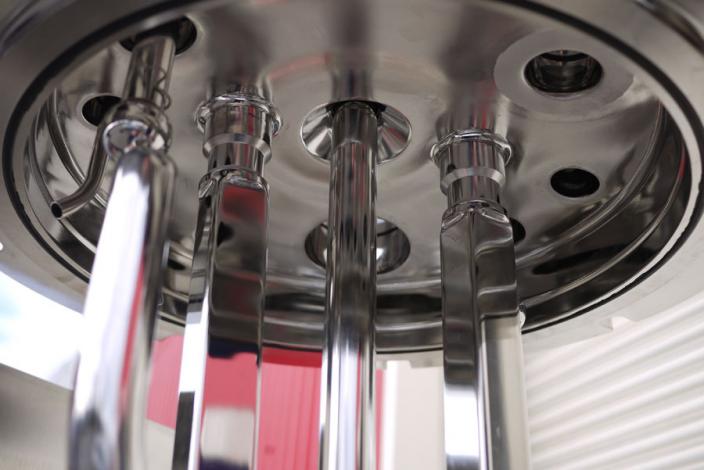

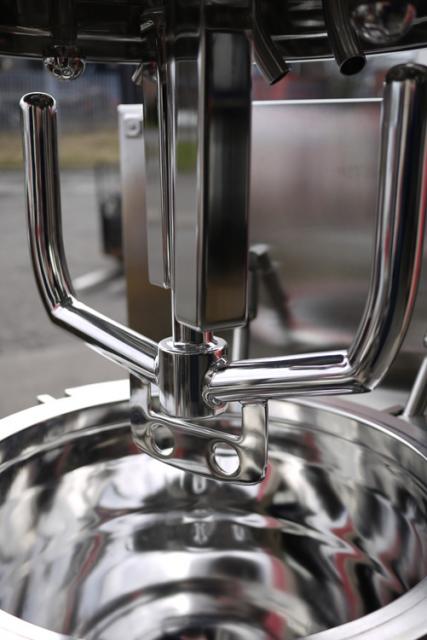

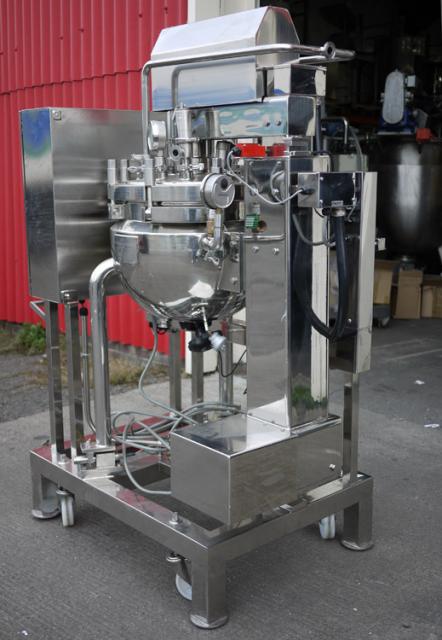

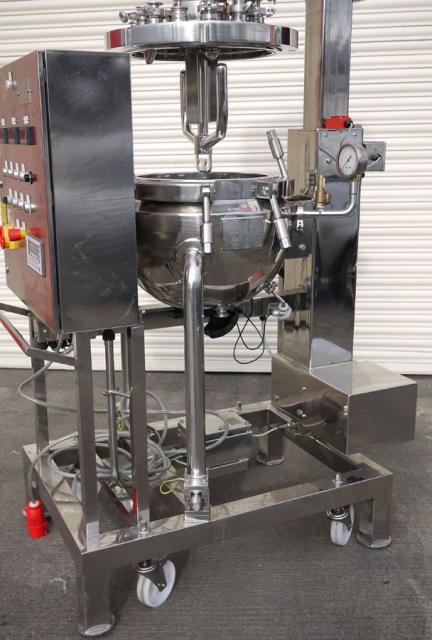

BPT SKERMAN UNUSED mobile process vessel constructed in 316 grade stainless steel with mirror polished finish to vessel interior and exterior surfaces. The hemispherical vessel has been made to a very high standard of quality and specification. 430mm I.D. x 360mm deep. Grosss volume to flange face is 42 litres suggesting that the nominal working capacity is approx 25-30 litres. The product outlet is 50mm dia and has a manual valve closure. The vessel is rated at 6 bar and full vacuum design pressure and -30 to 120°C. The stainless steel jacket is rated at the same as the vessel, the test pressure in both cases is 11 bar. Anchor type agitator with variable speed control, 2 x static baffle plates project from the top dish. Main vessel features are :- temperature probes to vessel jacket; hydraulic system for top dish raise and lower; load cell system fitted to vessel legs; vessel light and numerous connections on the top dish, analogue pressure and temperature gauges fitted, pressure relief valve with pre-set adjustment, safety interlock system; CIP spray-balls fitted. Stainless steel control panel and vessel are mounted onto a mobile 50mm square section frame. Overall dimensions 410mm x 840mm x 1100mm high.
