Stock Ref 3998 - Ekato Unimix SRT15 Process Vessel

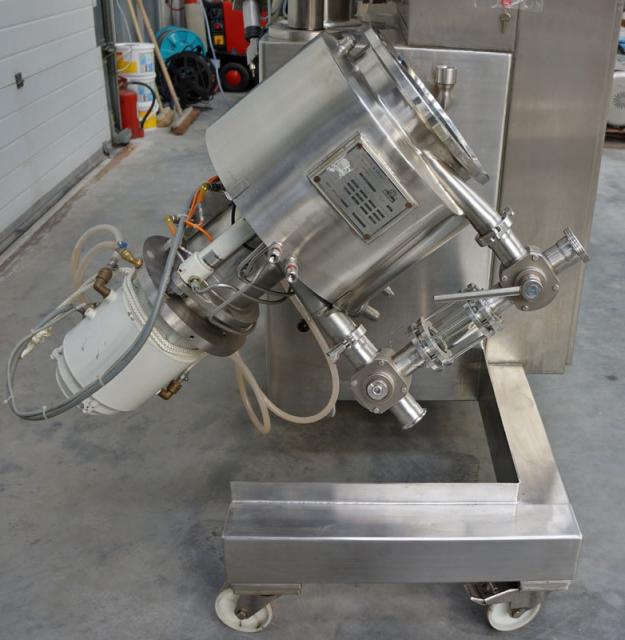

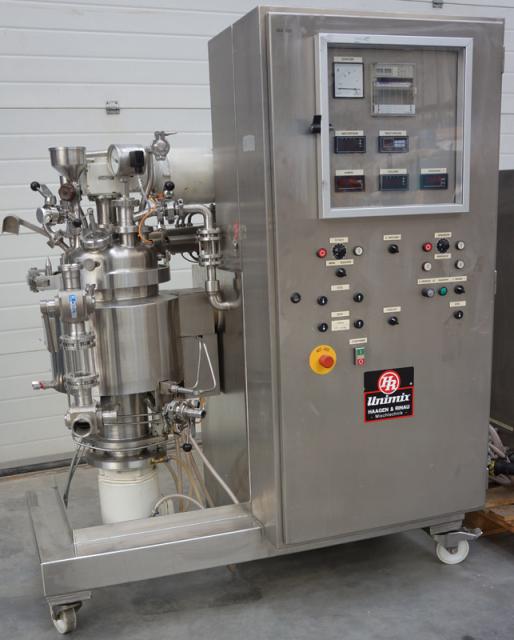

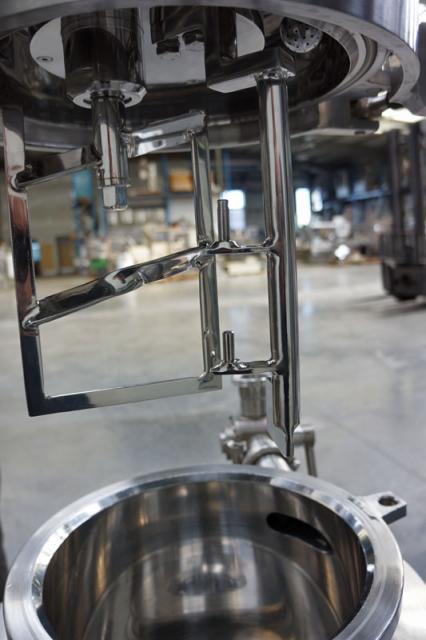

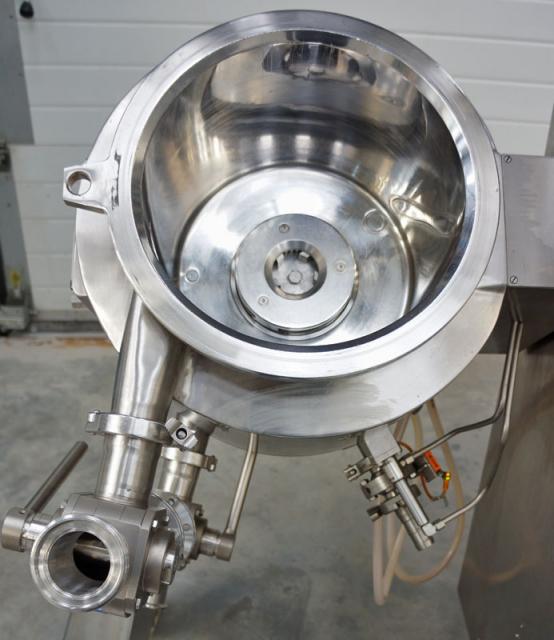

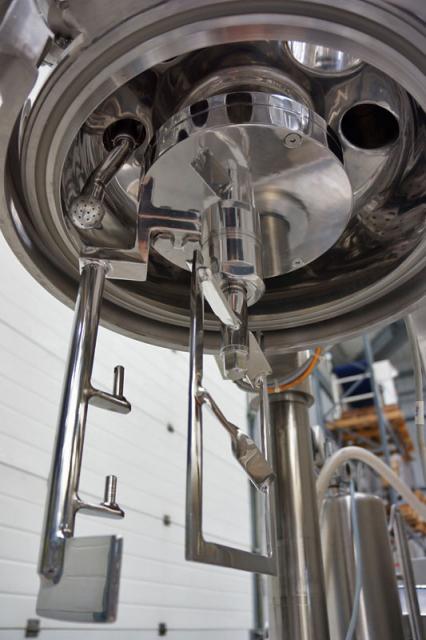

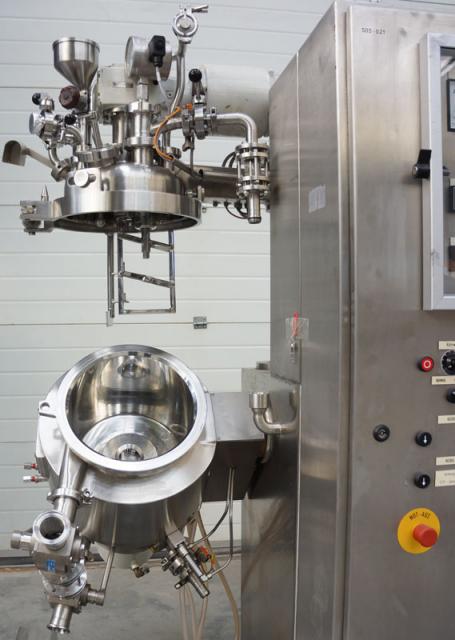

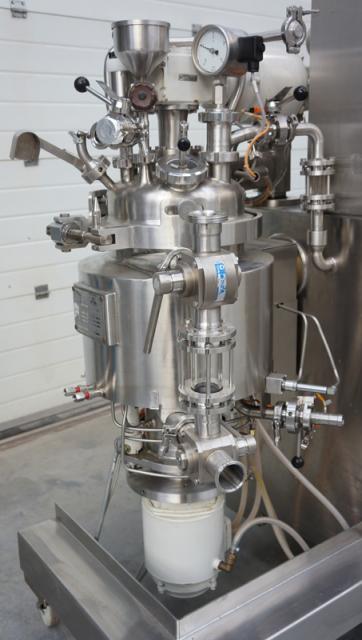

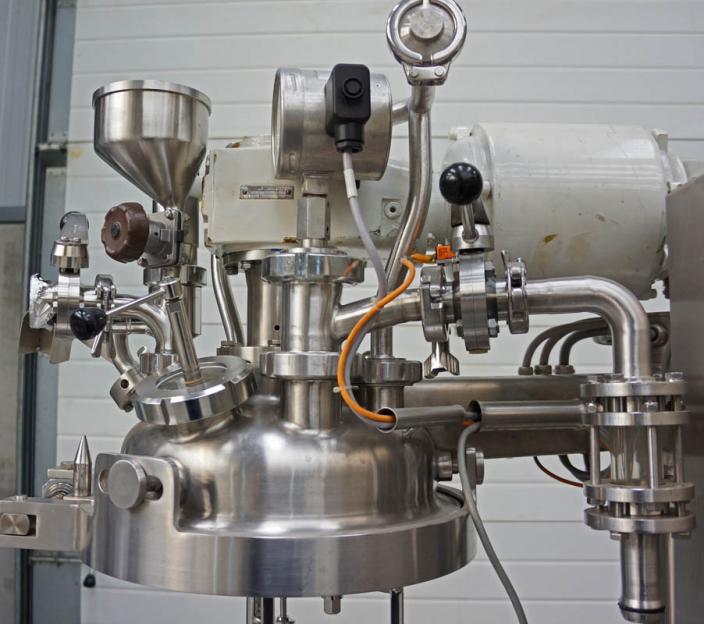

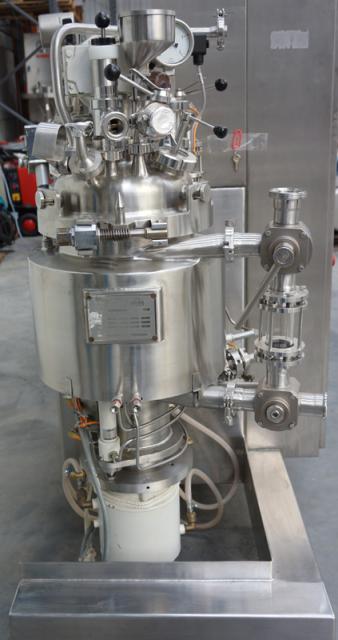

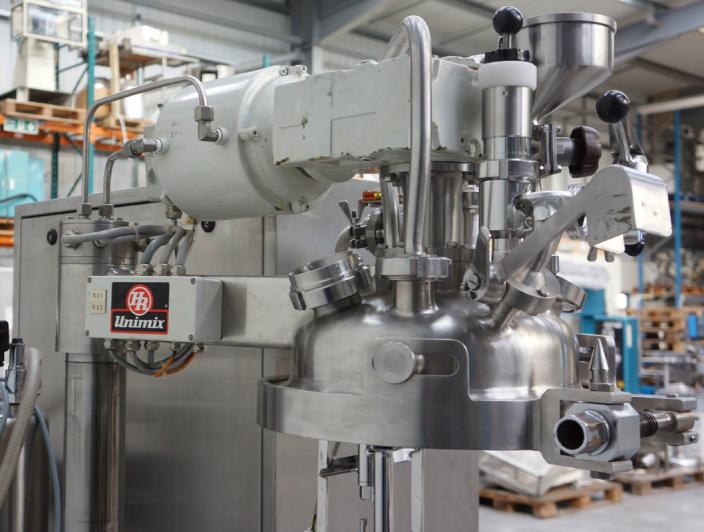

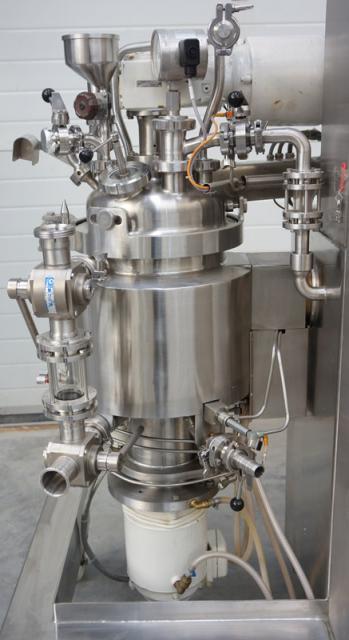

Haagen & Rinau UNIMIX SRT15 high quality process vessel in 316 grade stainless steel. The vessel gross volume is 22½ litres, rated @ full vacuum and 2 bar W.P. and 133°C. The vessel jacket is rated at 4 bar W.P. and 151°C. Bottom entry underdriven homogeniser with variable speed control setting on the main panel. The vessel has a hydraulic tilt feature allowing access for cleaning etc. Vessel top cover has hydraulic raise/lower of the scraped surface mixer unit. Top cover features include 0-4bar gauge, pressure relief valve, viewing port and additive port with hopper.
Vessel main features include:-
A. Variable speed main mixer with indication
B. Product temperature control
C. Homogeniser "multi-pass" recirculation bypass system
D. Hot water C.I.P. system
E. Cooling water jacket supply

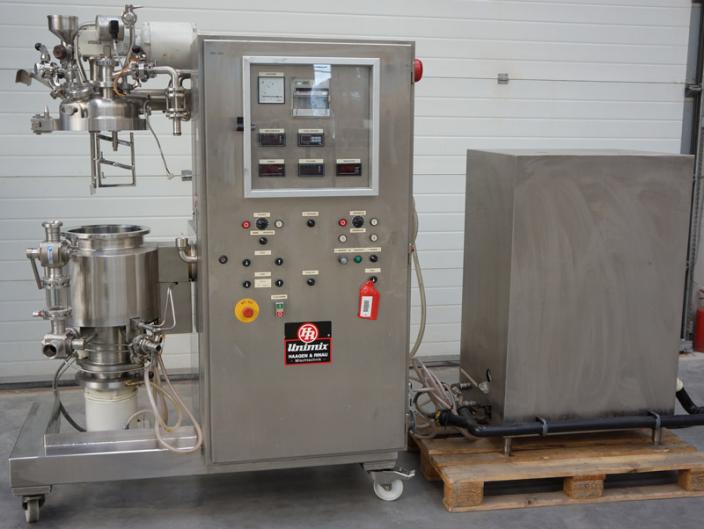

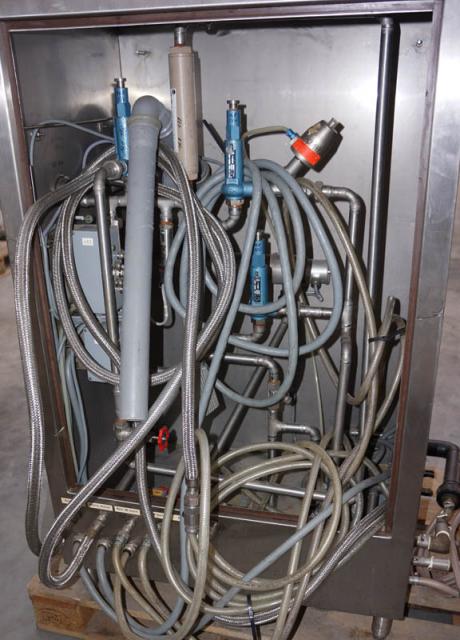

F. Separate heating and cooling services module
G. Integrated vacuum system

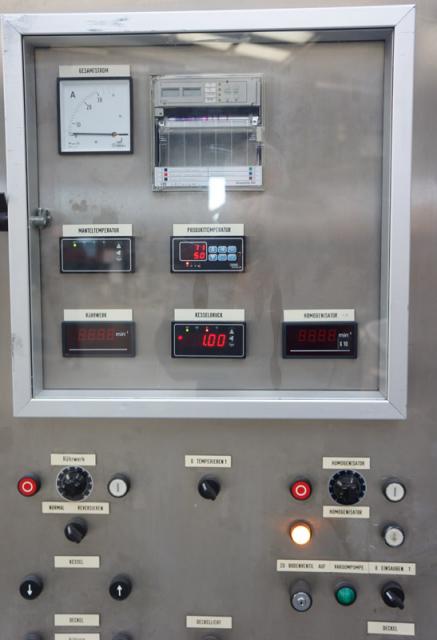

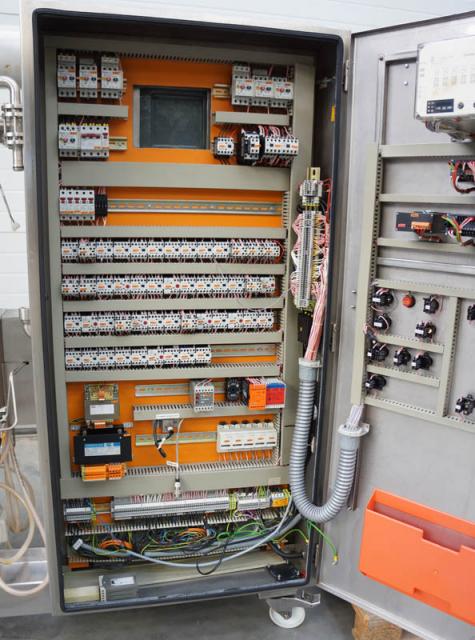

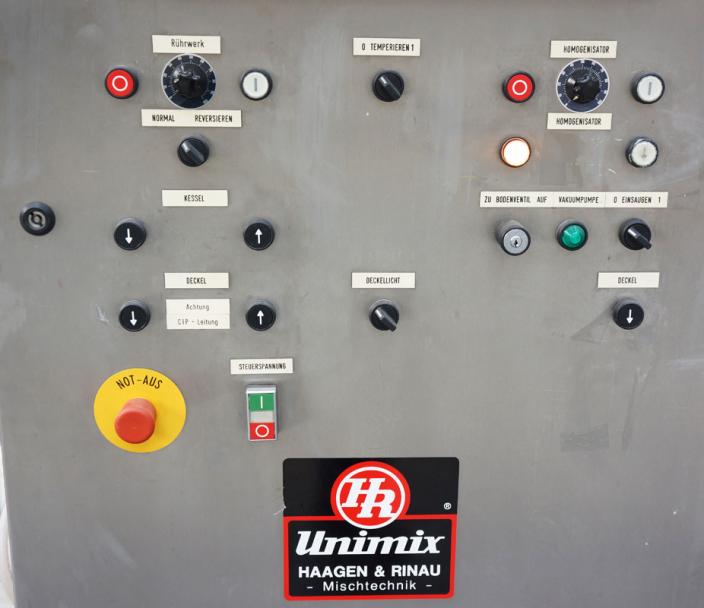

H. Full feature control panel with information displays
I. GMP conformity
J. Unit can be static or mobilised
