Stock Ref 4514 IMA COMADIS C1090 TUBE FILLER

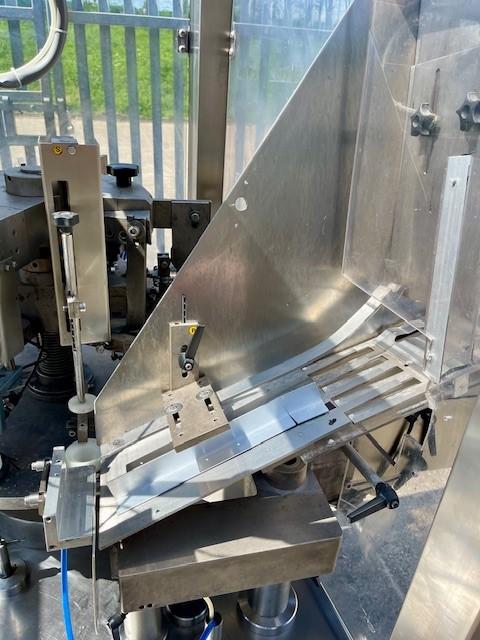

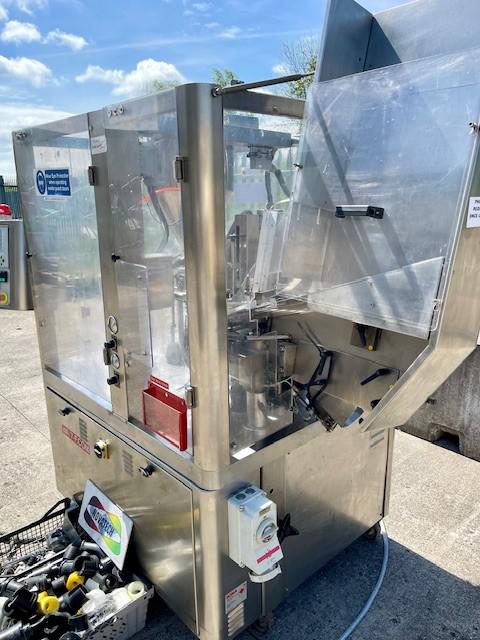

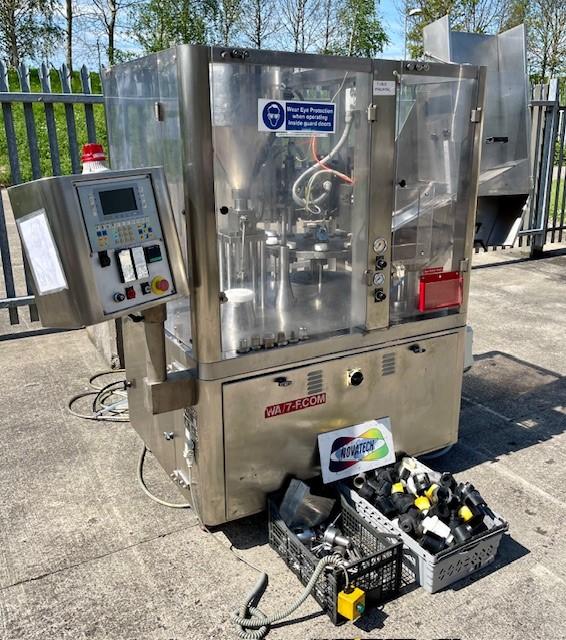

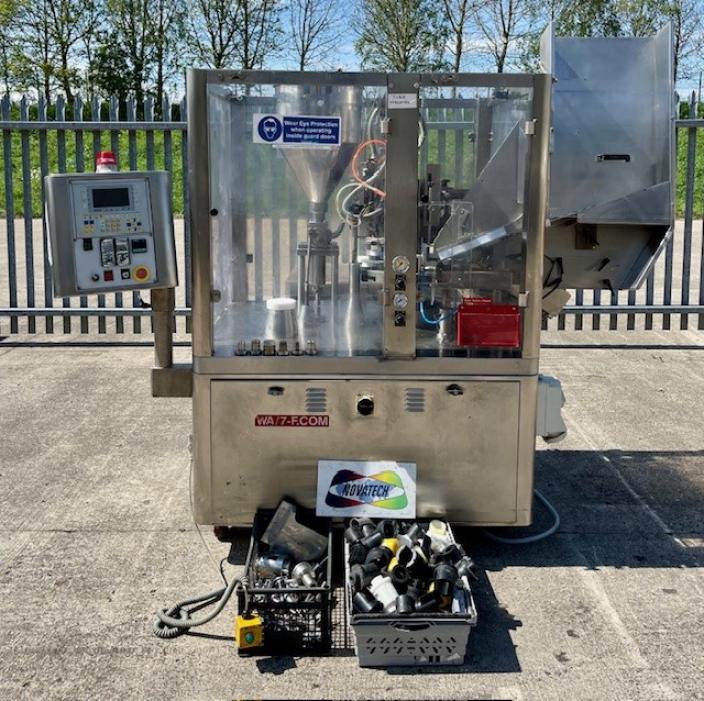

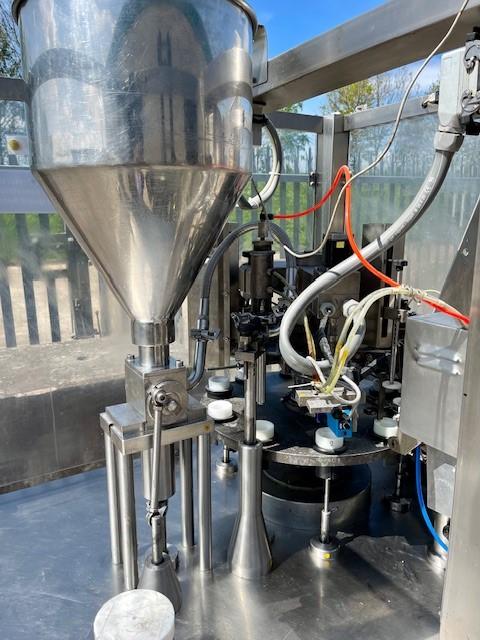

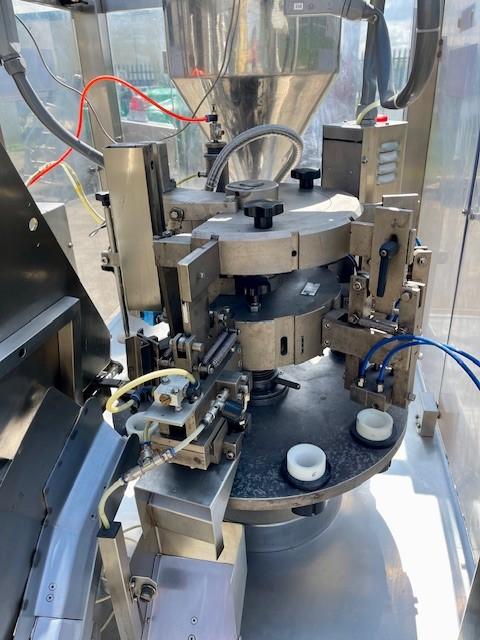

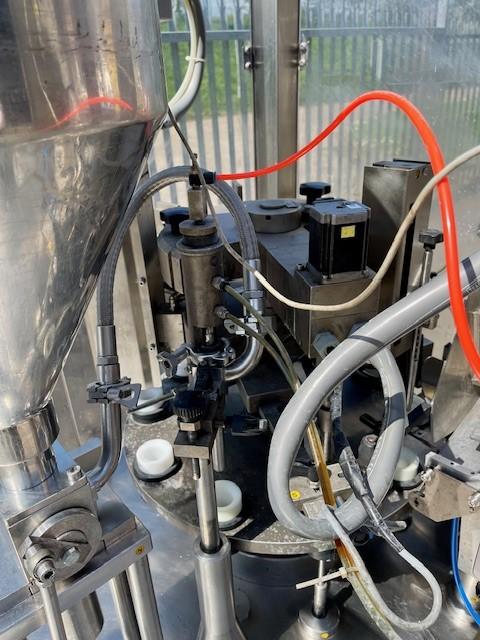

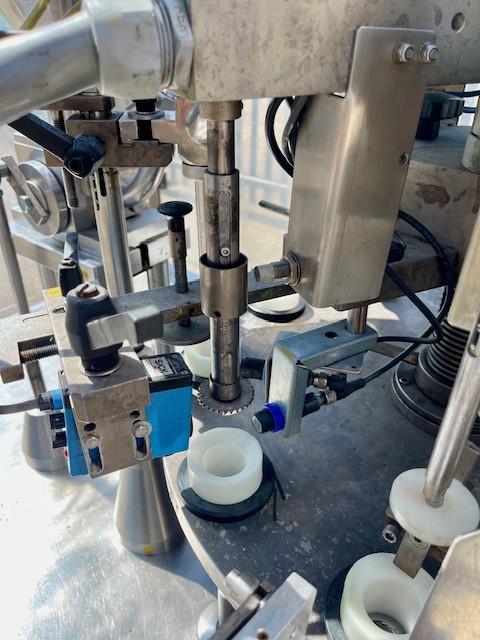

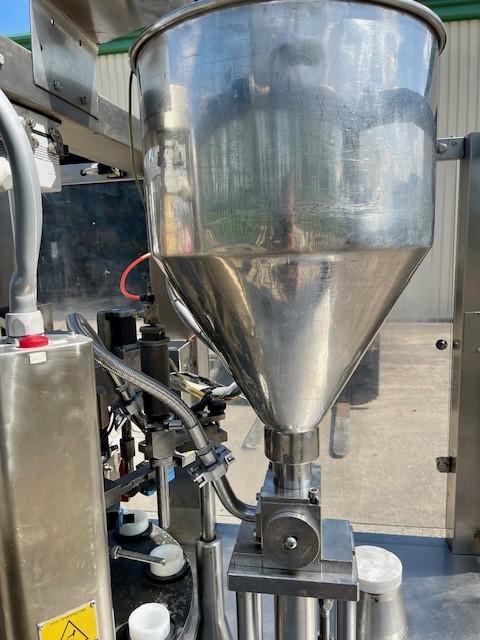

IMA COMADIS model C1090 fully automatic tube filler. The machine is complete with a large capacity cassette style empty tube loading system. The large product hopper has a level sensor and an auger type inductor/stirrer unit . Other features include: printed tube orientation/registration system, no tube-no fill sensor, digital display colour control panel, full safety guarding with electrical interlocking to all opening panels. The maximum output speed is stated as 90 tubes/minute depending on product properties and the fill volume set.
Automatic tube filler for pharmaceutical, cosmetic, chemical and foodstuff products.
A benchmark model, available in different levels of automation along with the widest
range of additional devices. In all cases it grants the “state of the art” of single
nozzle technology: complete, fast, easy to use.
• Choice of automatic/robotised tube feeders

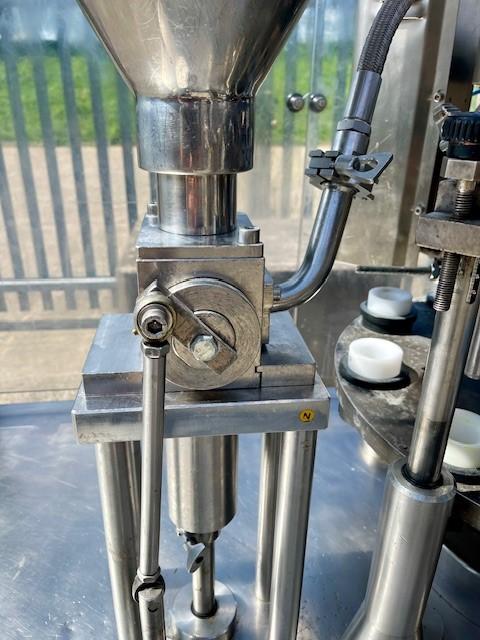

• Easy-to-disassemble dosing pump

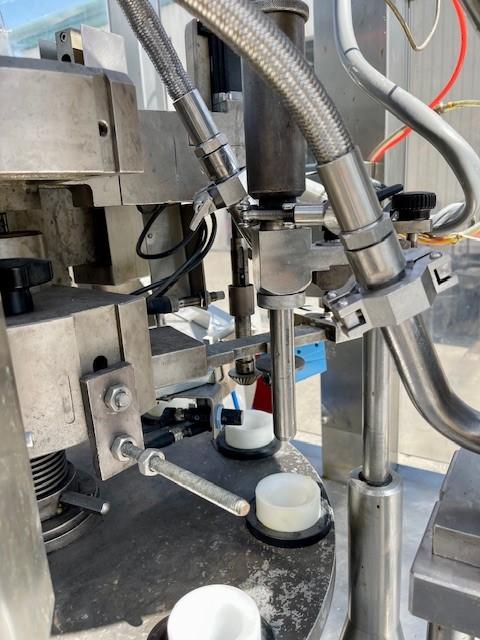

• Diving nozzle with positive shut-off valve and cleaning by air blow

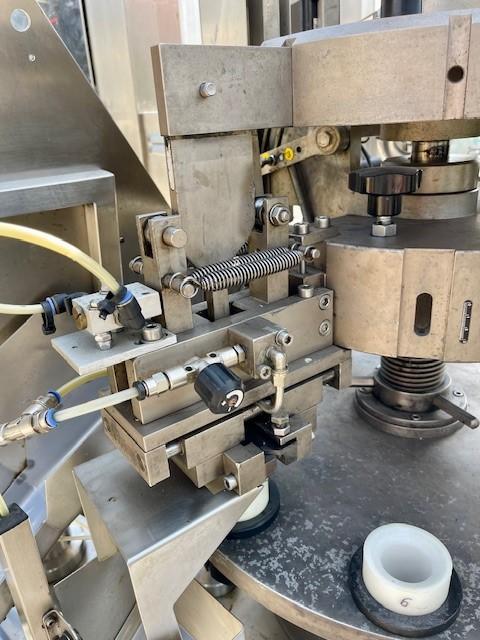

• Metal tube closing unit for normal, double and saddle fold

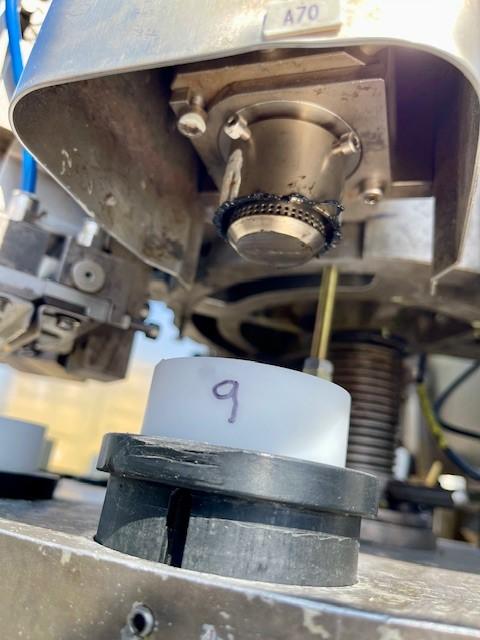

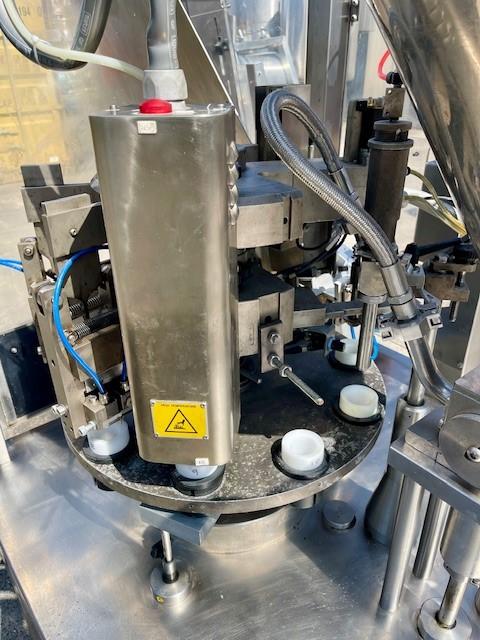

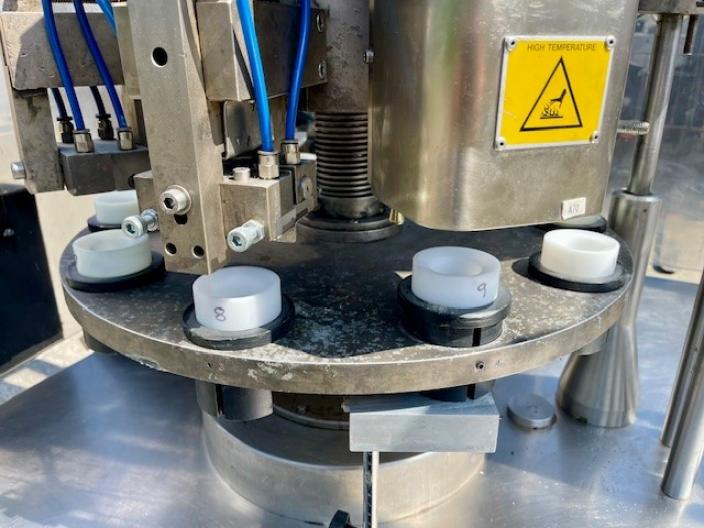

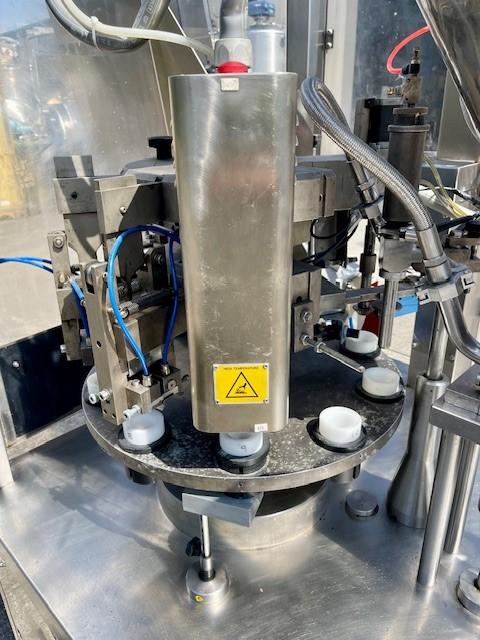

• Thermo-sealing of plastic and laminate tubes by hot air or hot jaws technology
• Customised “designer seals” on request

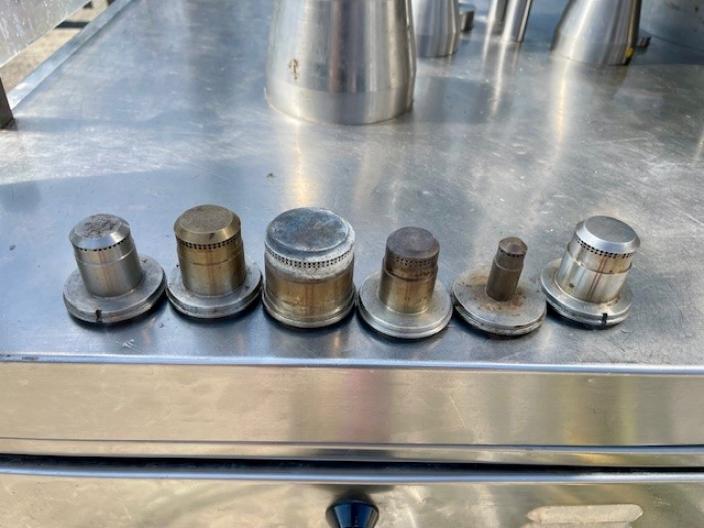

• Quick interchangeability of closing heads

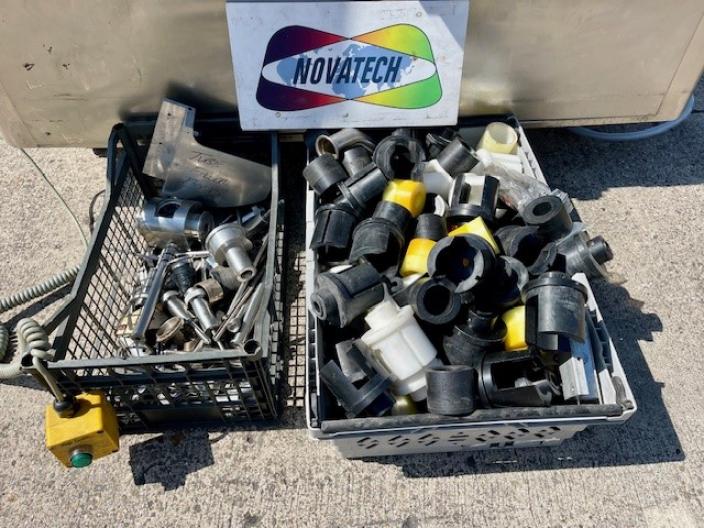

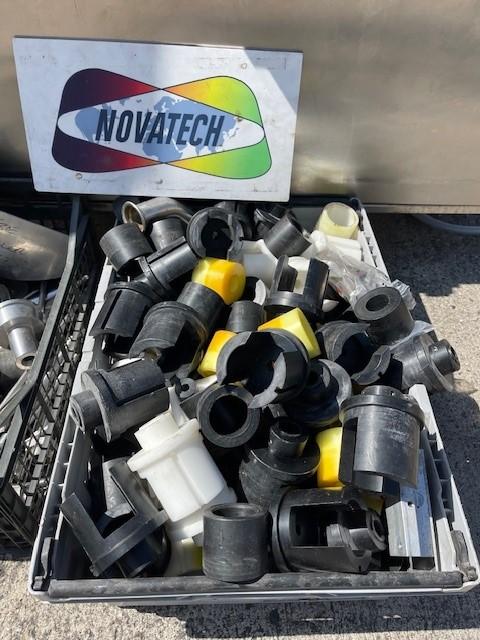

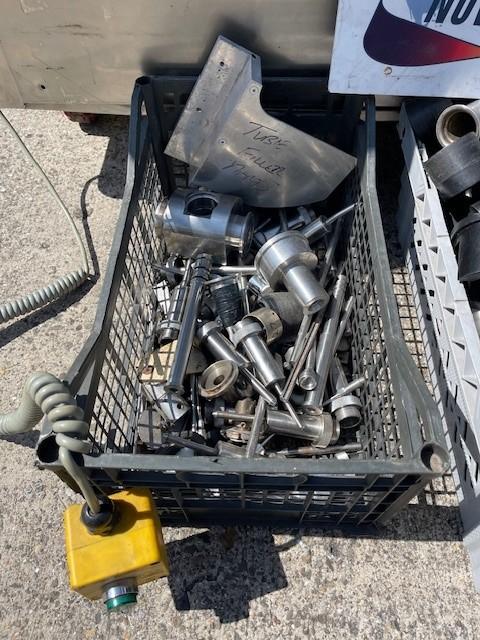

• Simplified and easy change of size parts, without tools
• Electrical cabinet integrated within machine footprint

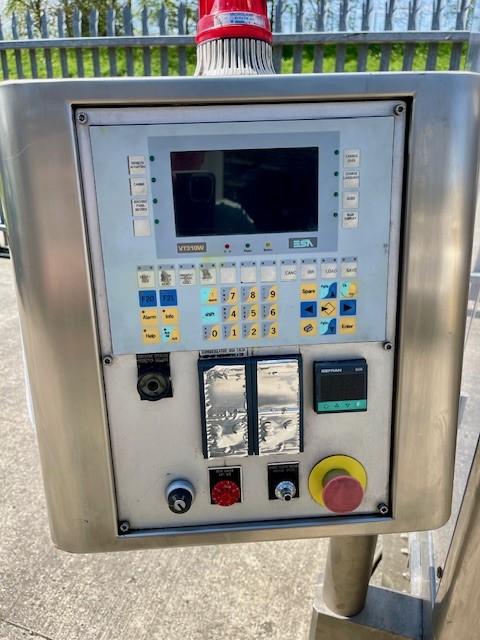

• Touch screen colour panel (HMI), suitable to memorise working parameters
• Special executions available
TECHNICAL DATA
Maximum speed 90/min
Filling volume (ml) 2-250 (on request up to 350)
Tube diameter (mm) 10-50
Tube length (mm) 60-250
Working stations 11
