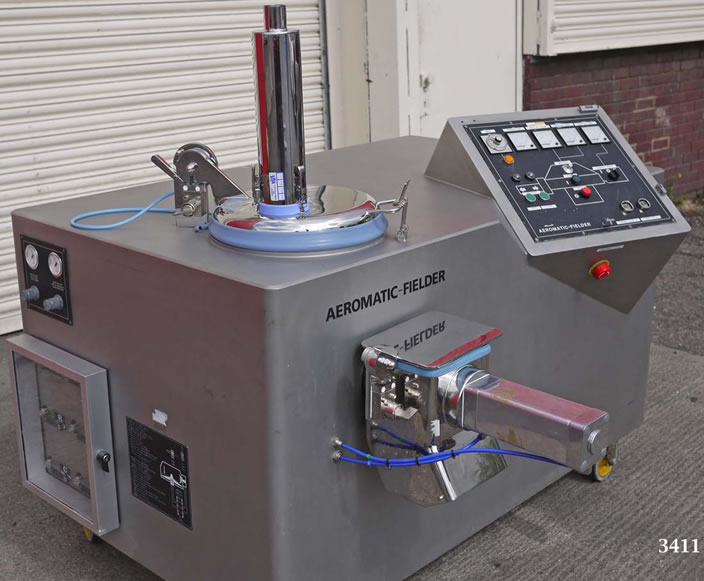

GEA AEROMATIC FIELDER PMA 65 high speed mixer/granulator - Stock Ref 3411

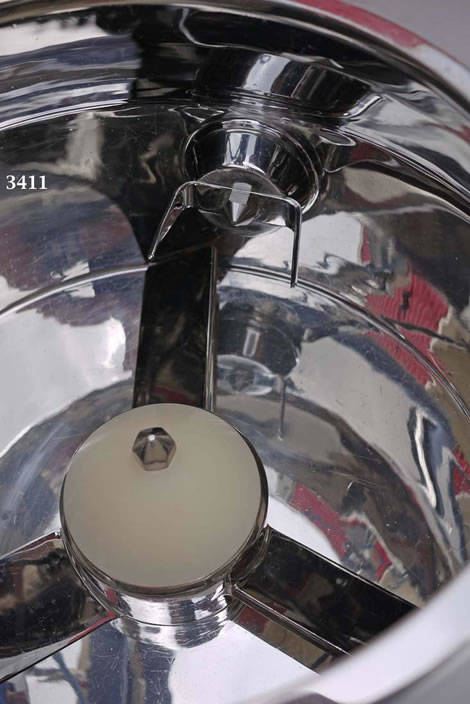

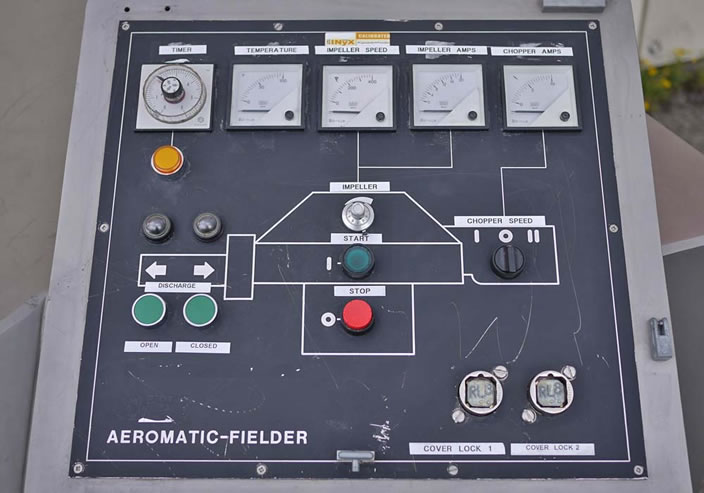

AEROMATIC FIELDER model PharmaMatrix PMA 65 high speed mixer-granulator constructed in GMP quality 316 grade stainless steel with mirror polished finish to all product contact surfaces. The machine was supplied new in 1996 and having had very little light use it is in exceptional mechanical and cosmetic condition. The mixing bowl gross volume is approx 65 litres, nominal working capacity is 25 kg, subject to product specific density. The main (3 blade) mixing impeller is driven from a 7.5kw 415v non- flameproof motor, variable speed range 40-400 rpm. The 2 blade side entry granulator is driven from a two speed 1.3kw 1500 rpm/1.8 kw 3000 rpm 415v non- flameproof motor. The mixing bowl top cover has a filter housing and an inflatable seal, activated automatically. The machine has a wash-down system for both motor shaft seals The mixing bowl has an external stainless steel heating / cooling jacket rated at 2 bar/ 80c max, < 7 litres/min. CASTELL key safety interlock devices fitted to the top cover and product discharge valve access cover. The machine control panel features 2 x motor load amp-meters, granulator and main impeller speed indicators, batch timer setting, 0-100deg C temperature indicator, discharge valve open / close, main impeller speed setting, E stop, safety key docking points. The machine has 4 x castors for mobility. The original documentation and installation, operating & maintenance instruction manual are held on file and will be supplied on purchase.
