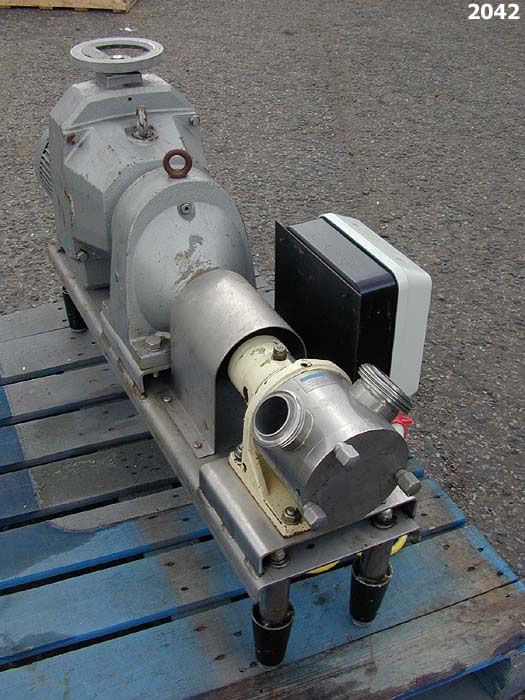

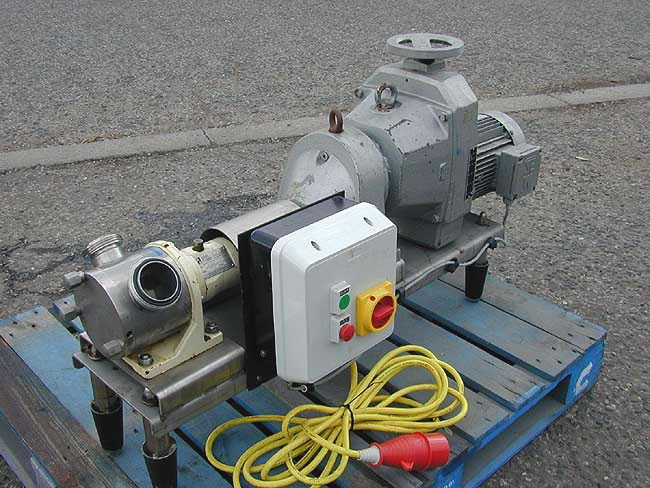

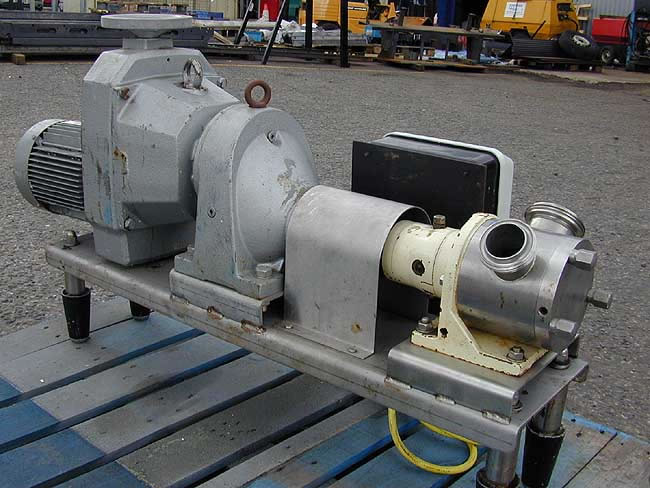

Maso Sine Pump - Stock Ref 2042

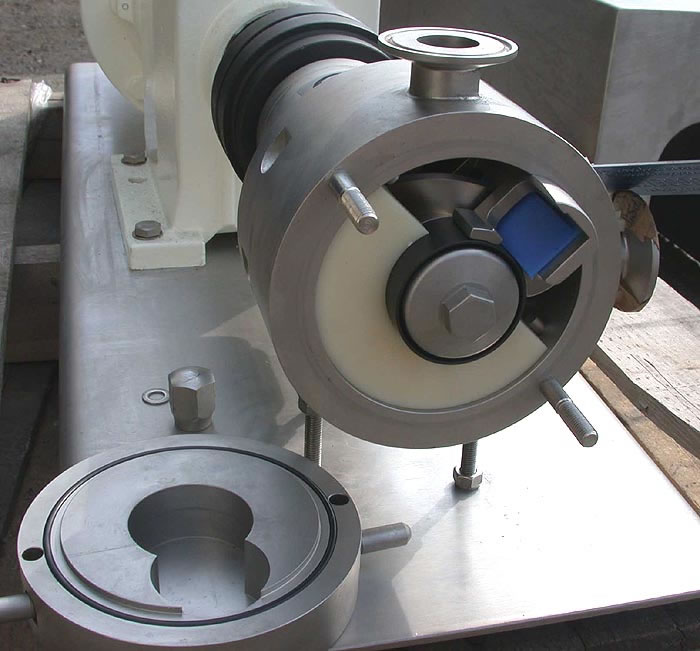

MASO Sine Pump model SPS-2 positive displacement rotating element pump in 316 grade stainless steel. 65mm dia suction port, 50mm dia discharge port, V configuration, RJT thread connections. Driven from a 3kw 415v 3ph motor via a variable speed gearbox with handwheel adjustment, speed range 36 - 671 rpm. Pump capacity (0.11 litre/rev) 4 - 74 litres per min. Maximum pressure 15 bar. Mounted onto a stainless steel baseplate. Fitted electrical isolator and stop/start. Ex food industry. The sinusoidal rotor shape imparts a gentle pumping action and is suitable for shear sensitive products within the Food, Cosmetic, Pharmaceutical industries etc. Features: Virtually pulse free action; CIP Cleanable; Easy to dismantle; Powerful suction; Interchangeable internal parts.
