SINCLAIR 500 litre mixing vessel - Stock Ref 2546

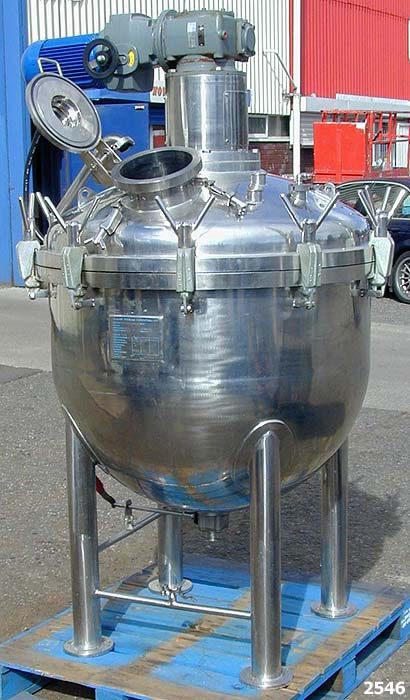

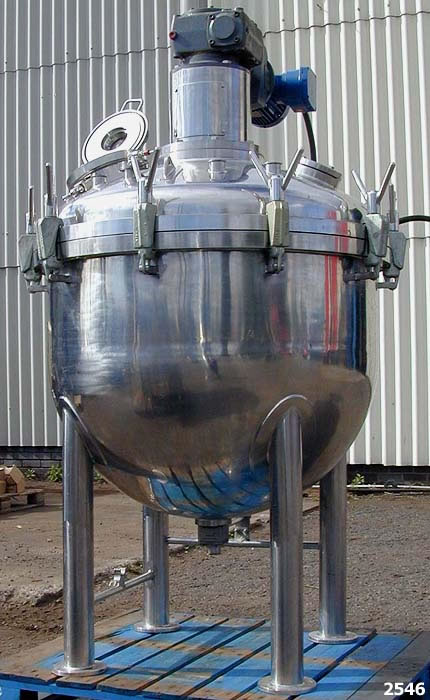

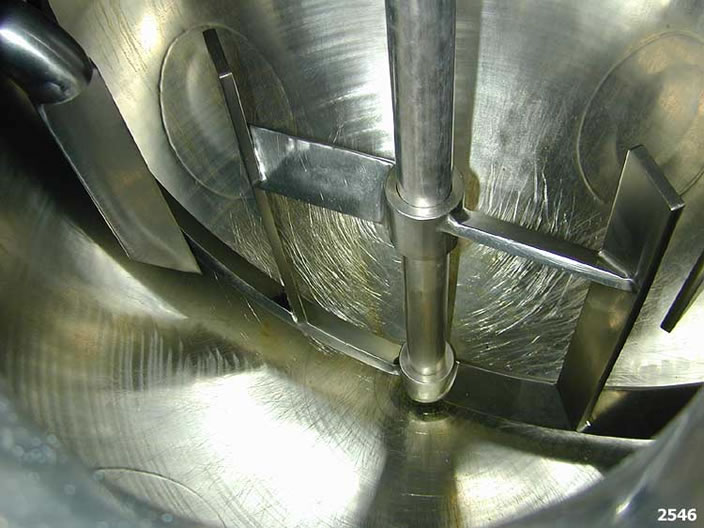

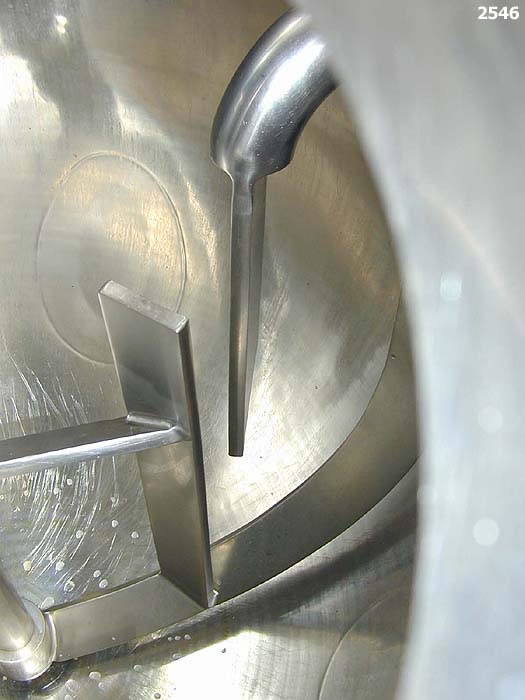

~SINCLAIR STAINLESS hemispherical mixing vessel in polished finish 316 stainless steel, supplied new in 1992. 1.0m dia x 1040mm total depth (from flange face), gross capacity approx 700 litres. Design pressure 4 bar and full vacuum, test pressure 5 bar. Anchor profile type mixer with baffle plates driven from a 1.5kw 1440 rpm EExd flameproof motor via a hand adjustable variable speed gearbox. 2 x static baffle plates fitted. Flanged top dish with quick release clamp set and has one 200mm dia chargeport with sightglass, 1 x 80mm lightglass, 5 x 35mm dia connections. Bottom outlet 40mm dia with valve fitted, 220mm ground clearance. The vessel stands on 4 x 80mm dia stainless legs, overall dimensions 1200mm dia x 2030mm high.
