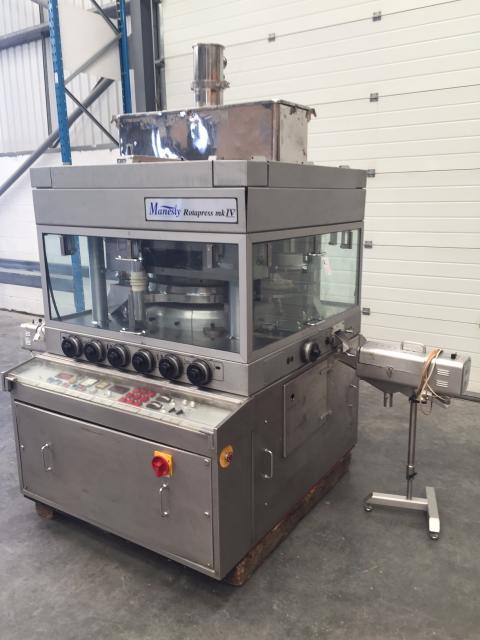

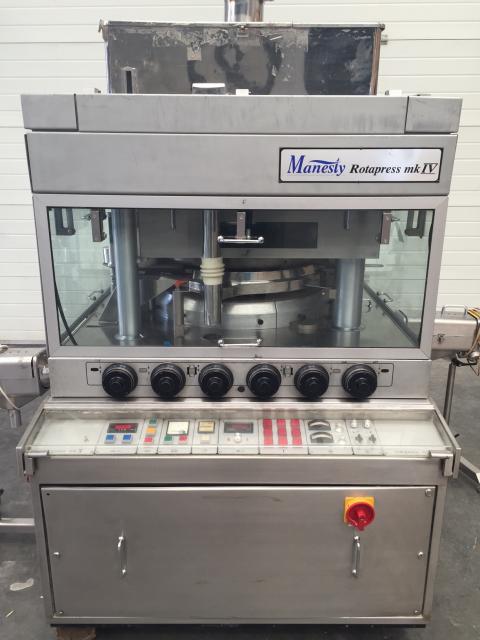

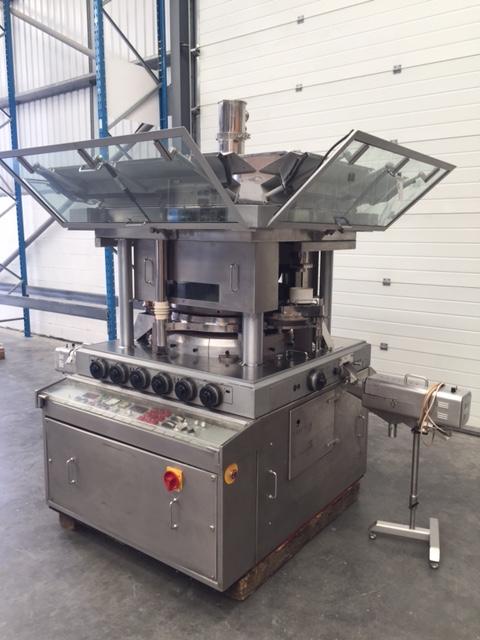

Stock Ref 3889 - Manesty Rotapress Mark IV, 55 station
MANESTY Rotapress mk lV. High speed rotary tablet compression machine suitable for running a wide range of products, specification details:-
55 station turret for Euro-norm ”B” type punches and dies.
Keyway to upper punch guides for the manufacture of caplet and other shaped tablets.
Double sided compression with pre-compression feature and quick change rotary power feeders
Maximum tablet dia. 16.0 mm
Maximum depth of die fill. 17.4 mm
Maximum tablet production output: 600,00 per hour (10,000 per min)
Upper punch entry: 1.5 - 8 mm
Maximum compaction force: 6.5 - 10 tonnes
Motor power: 7.5kw
Machine weight: 3.745 tonnes.
Approx overall dimensions: 1670 x 1625 x 1910mm high.
Other features.
Centralised lubrication system
Integrated support frames for attachment of Manesty TD25 de-dusters.
Fully guarded with electrical safety interlock system.
Large capacity stainless steel product feed hopper.
Tight punch detector.
Dust extraction system.
Pressure rolls sealed bearings.
Hydro-pneumatic overload system

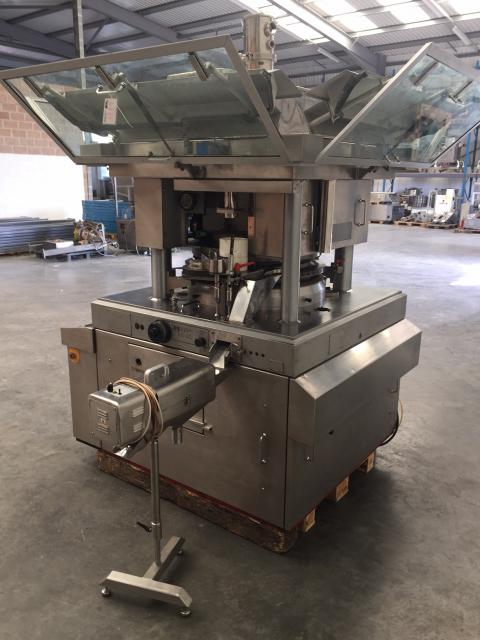

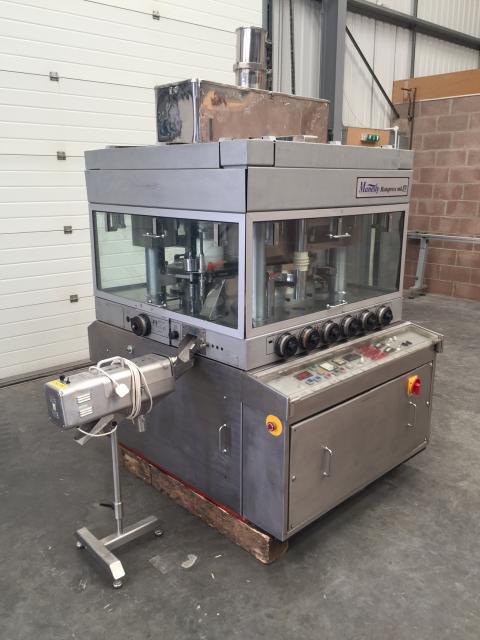

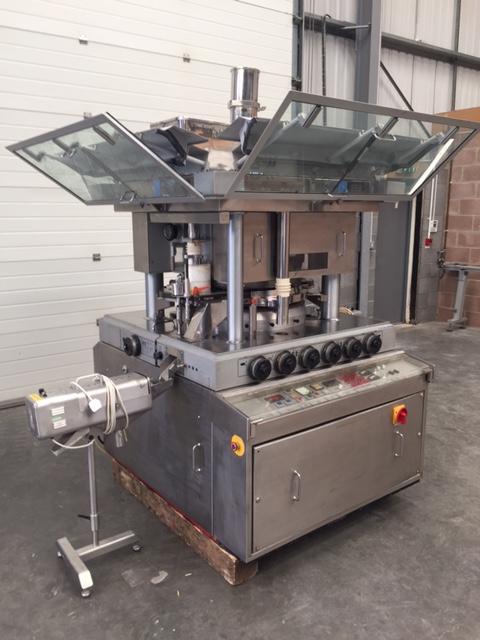

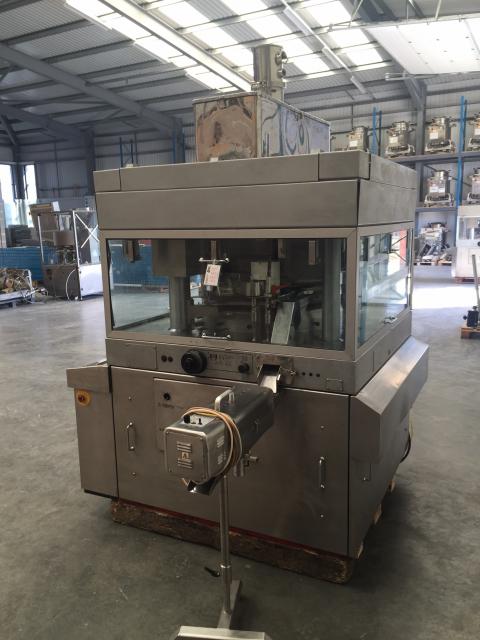

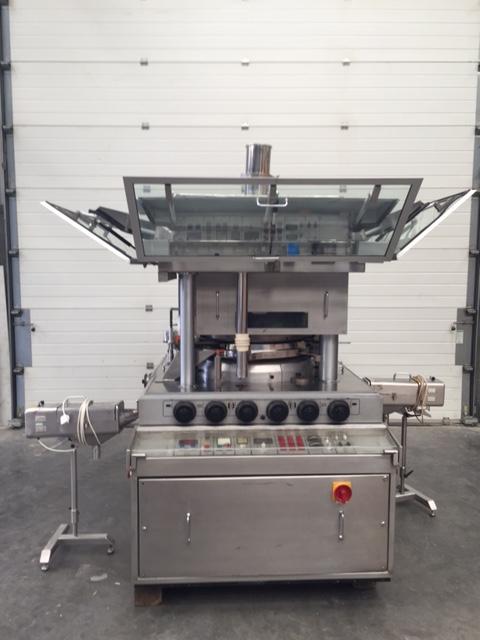

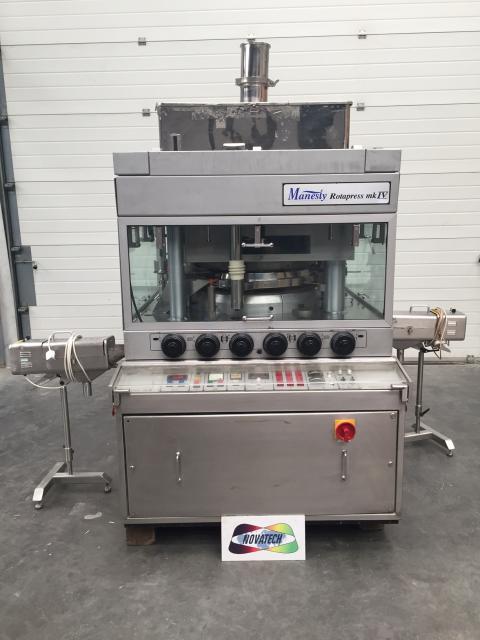

The Manesty TD25 deduster shown in the photographs is available as an additional item and can be quoted for if required.
